Lotus JXL-COB04-S15W-5CCT – 15 Watt 4″ Square Economy Regressed LED Downlight 5CCT

SKU : N/A Categories : , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 53.06

The economy regressed LED downlights by Lotus LED Lights are an excellent choice to provide long last, energy efficient illumination to your new construction or remodel application without breaking your budget. They are IC-rated for direct contact with insulation with no housing required. Being 5CCT-tunable, they allow for the installer or end-user to easily switch between warm 27K, 30K, 35K, 40K or daylight 50K white light color temperatures on the included driver. Their high CRI of 90+ means you’ll enjoy true color rendering in the area of illumination.

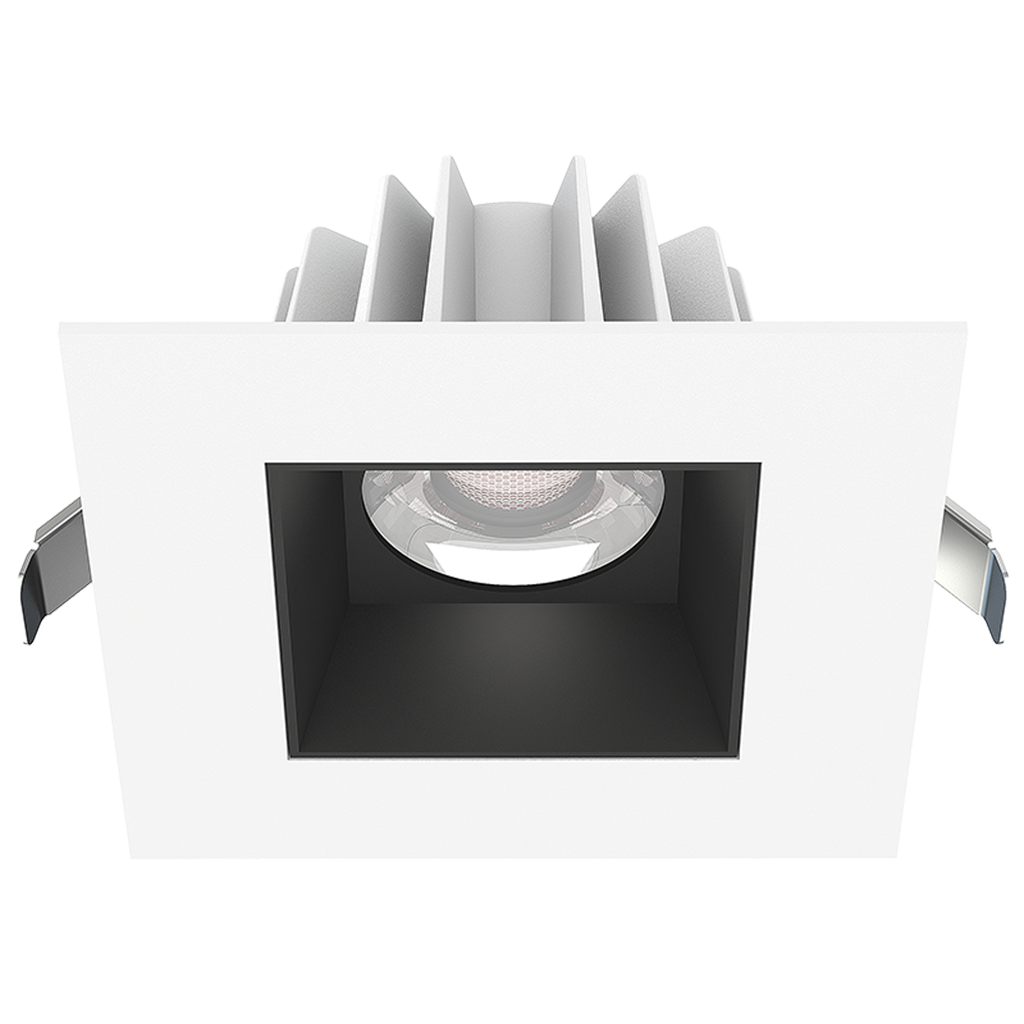

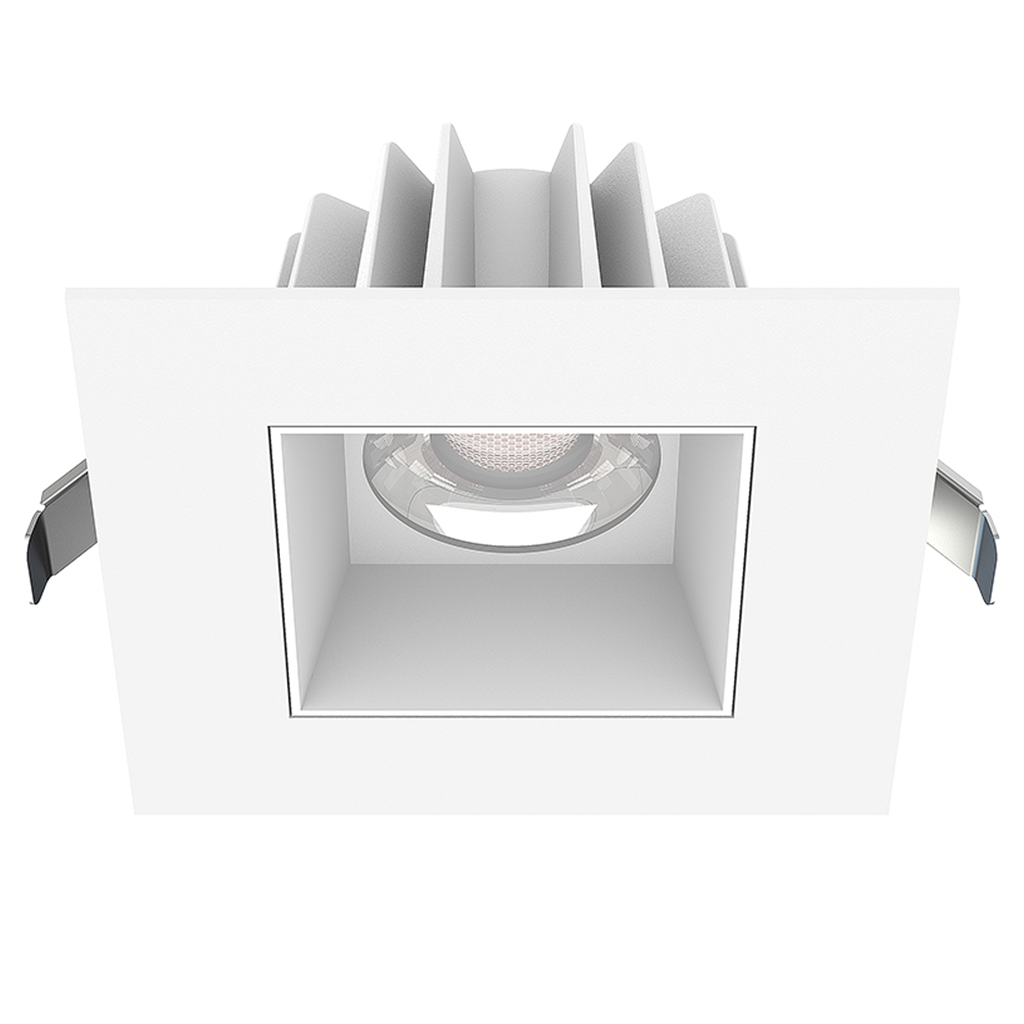

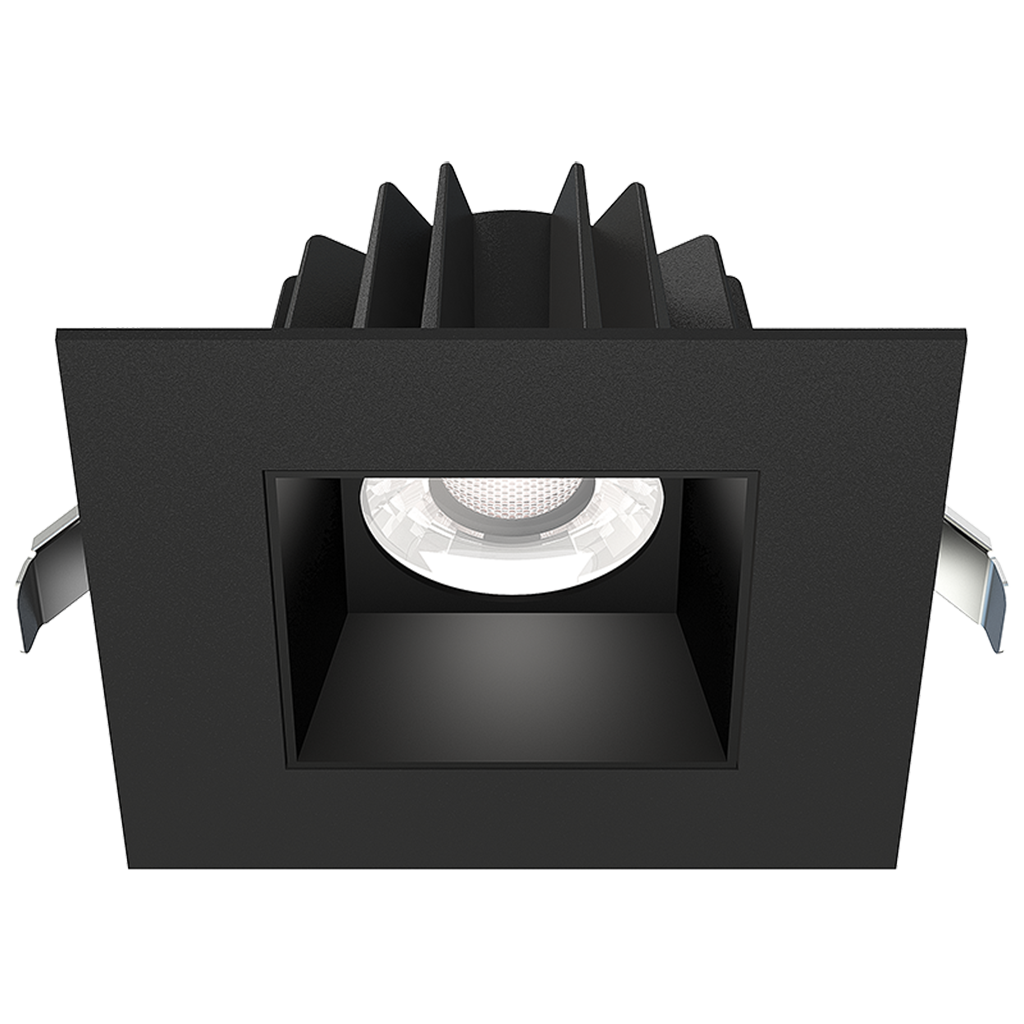

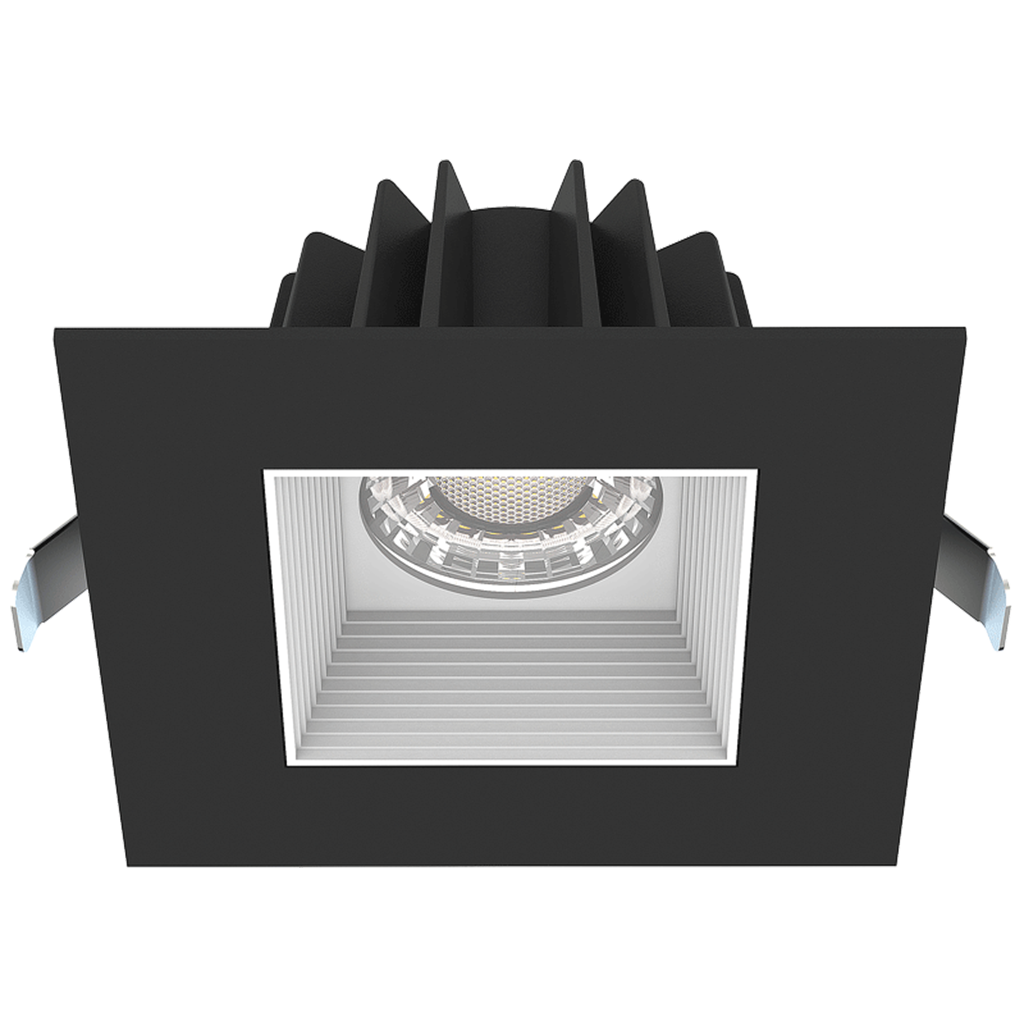

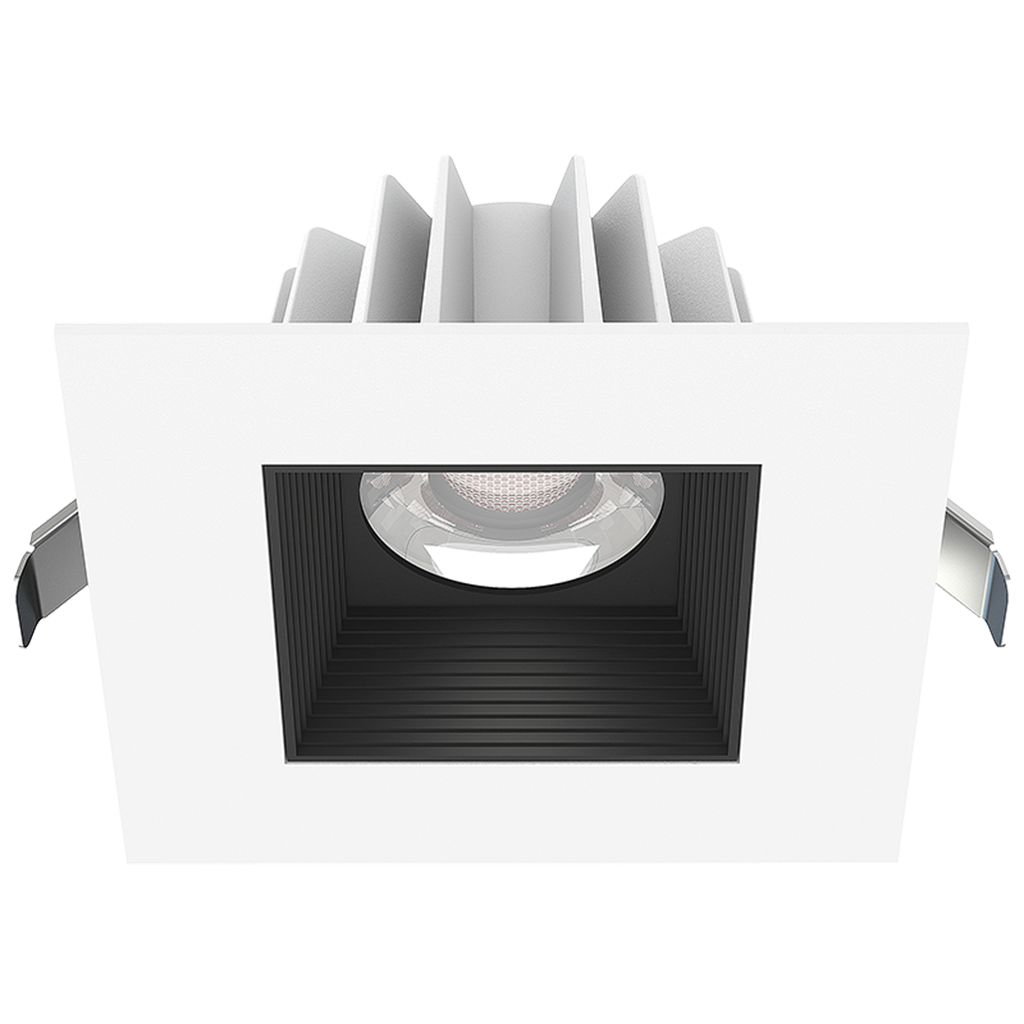

The JXL-COB04-S15W-5CCT is a Square, 15 watt LED downlight with smooth or baffled reflector and white or black reflector with the following features.

    • 120V operation
    • Dimmable
    • CCT-tunable: choose between warm 30K, neutral 40K or daylight 50K white light color temperatures
    • High CRI of 90+ for true color rendering
    • 36º beam angle
    • IC-rated
    • Damp location rated
    • Operating temperature: -4º to 104º F
    • 30,000 hour rated
    • 3 year warranty

Product Information

CONSTRUCTION:
4″ Square Recessed fixture with integral Driver in Connection Box.
One driver for every fixture required.

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Ceiling Clearance Required: 3″

  • Driver Input Voltage: 120V AC 50/60 Hz
  • Dimmability – TRIAC Dimmers 20%-100%
  • Energy Used: 15W
  • Halogen equivalent: 100W
  • Beam Angle: 36°
  • User Selectable Light colour options: 2700 | 3000 | 3500 | 4000 | 5000 K
  • Light output with White Reflectors – Smooth or Baffle: 1160 | 1270 | 1350 | 1390 | 1350 lm
  • Light output with Black Reflectors – Smooth or Baffle: 1130 | 1210 | 1280 | 1350 | 1280 lm
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Approved Locations: Insulated Ceilings & Damp Locations
  • Rated: cETLus

DIMENSIONS:

  • ID 3 1/2″, OD 4 3/4″; Thickness 3″
  • Cut out: 4 1/4″
  • Junction Box Dimensions (with driver inside): 3 1/2” x 3 1/2” x 1 1/4”

Mounting Plate 13″ Long  Model #MP4-2

Mounting Plate 26″ Long   Model #RIP4

Flanged Plate with Hanger Bars   Model #FRP4

Jumper Cables 10 ft   Model #JC-5CCT-10
