Lotus JXL-TXH10-T18W-5CCT – 18W 10 Linear Recessed LED Downlight – 5CCT – 120V

SKU : N/A Categories : , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 75.46

Lotus LED Lights 10 linear LED downlight is an excellent choice to provide your general ceiling downlighting application with long lasting, energy efficient LED illumination.Being CCT-tunable, these fixtures allow the user to select between 5 white light color temperatures to find the right color and light output to suit your application. The high color rendering (80 CRI) produces rich and vibrant colors in the area of illumination.

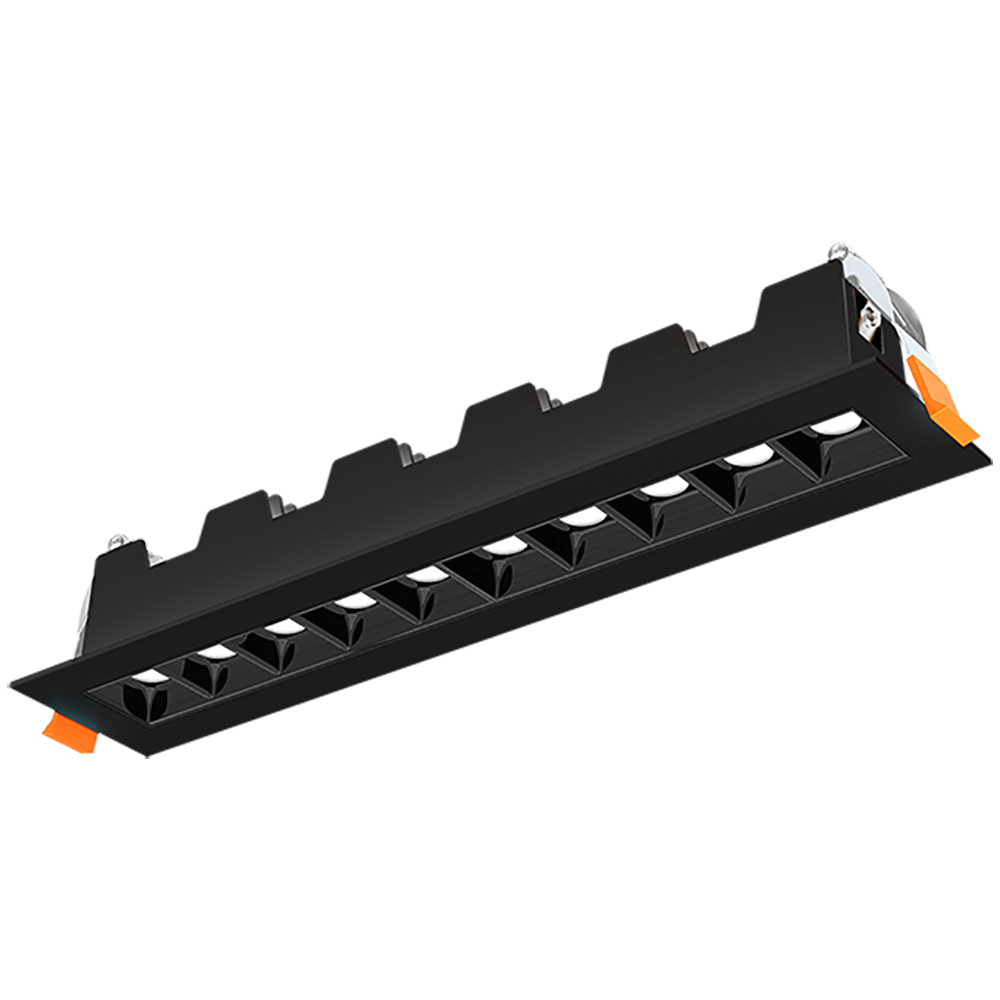

The JXL-TXH10-T18W-5CCT a 18 watt, 10 Linear Recessed LED in a white or black finish with the following features:

  • 5 CCT User Selectable 2700K-3000K-3500K-4000K-5000K
  • Type IC Rated – No Housing Required
  • 120V Triac Dimmable Driver Included
  • Beam Angle – 45° (default), 30° (custom)
  • 2″ Deep – Install Where Ceiling Space Is Limited
  • White or Black trims with Black reflectors for high end appearance
  • C ETL US certified
  • 3 Year Warranty

Product Information

CONSTRUCTION:
10 LED Linear Recessed Fixture With Integral Driver In Connection Box
One driver for every fixture required.

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Ceiling Clearance Required for driver to fit through the hole: 3″

  • Driver Input Voltage: 120V AC 50/60 Hz
  • Dimmability – TRIAC Dimmers 20%-100%
  • Energy Used: 18W
  • Halogen equivalent: 60W
  • Beam Angle: 45° (default), 30° (custom)
  • 5 CCT User Selectable 2700K-3000K-3500K-4000K-5000K
  • Light output 930 | 1030 | 1170 | 1210 | 1230 lm
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Approved Locations: Insulated Ceilings & Damp Locations
  • Rated: cETLus

DIMENSIONS:

  • Outside 11 5/8″ x 2 5/16″ | Inside 10 7/16″ x 1 5/16″ | Depth 2″
  • Cut out: 10 5/8″ to 1 1/2″
  • Junction Box Dimensions (with driver inside): 4 1/2” x 2 5/8” x 1 3/8”

Mounting Plate (Sold Separately)

Model # MP-5-10-LIN

Spec Sheet:

Photometric PDF files:
with 45° beam:
PDF 45° 2700K | PDF 45° 3000K | PDF 45° 3500K | PDF 45° 4000K | PDF 45° 5000K

with 30° beam:
PDF 30° 2700K | PDF 30° 3000K | PDF 30° 3500K | PDF 30° 4000K | PDF 30° 5000K

Photometric IES files:
with 45° beam:
IES 45° 2700K | IES 45° 3000K | IES 45° 3500K | IES 45° 4000K | IES 45° 5000K

with 30° beam:
IES 30° 2700K | IES 30° 3000K | IES 30° 3500K | IES 30° 4000K | IES 30° 5000K
