Lotus LB4R – 11 Watt 4″ Builder Grade Thin Recessed LED Downlight – 120V

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 26.60

Save on labor with the Lotus LED Lights 11 watt 4″ builder grade super thin recessed LED downlight. Being IC-rated, they install quickly and easily directly into the ceiling with no can required. Their thin 1/2″ depth allows for installation directly under ceiling joists for maximum layout flexibility. The builder grade downlight is a less expensive version of the classic super thin Lotus downlight, providing a shorter rated lifespan and warranty but with the same quality performance you’d expect from the Lotus LED Lights, the original super thin LED downlight manufacturers.

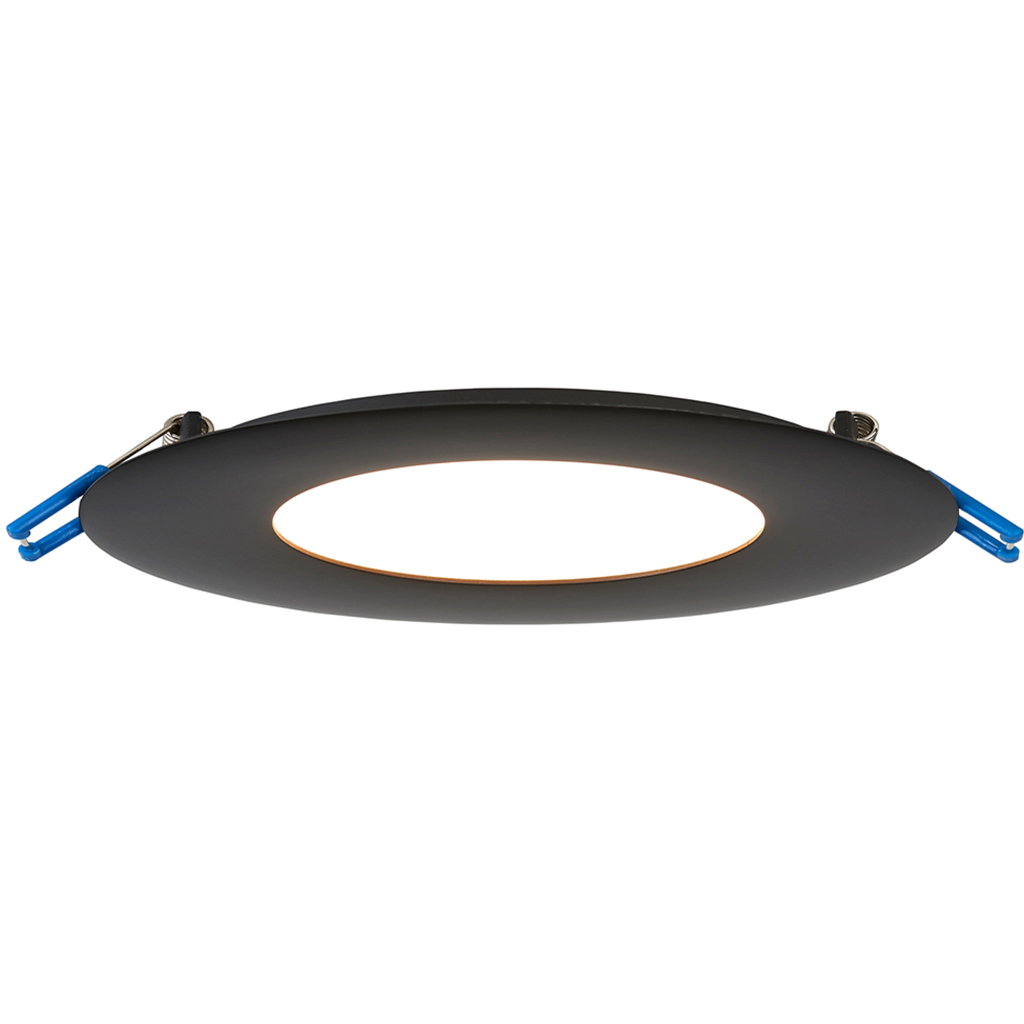

The LB4R is a 4″ round 11 watt builder grade super thin recessed LED downlight, available in White and Black trim with the following features.

    • Includes standard dimmable driver
    • 1/2″ thin – install directly under joists for maximum layout flexibility
    • 110° beam angle
    • Type IC rated – no housing required
    • Driver inside connection box – no junction box required
    • Wet/damp location rated
    • Constructed of durable die cast aluminum body for optimal heat dissipation
    • Energy Star
    • 36,000 hour rated
    • 3 year warranty

Product Information

CONSTRUCTION:
Round 4″ fixtures with integral LEDs. Class 2 Isolated external driver factory installed inside junction box.
One driver for every fixture required.

MOUNTING:
Cut out hole in ceiling (4 1/4″ to 4 1/2″) and snap fixture in opening with attached spring clips.
Space in ceiling needed for the driver to fit through the hole – 2″.

  • Driver Input Voltage: 120V AC (Dimmable)
  • Optional Driver Input Voltage: 277 – 347 V AC (Not Dimmable)
  • Power factor: > 0.98
  • Energy Used: 11W
  • Halogen equivalent: 65W
  • Beam Angle: 110°
  • Light colour options: Warm White 3000K, Neutral White 4100K, Dim to Warm 3000K to 2000K
  • Light output: Warm White 700 lm, Neutral White 730 lm, Dim to Warm 700 lm
  • CRI: > 80
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus Listed, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Energy Star (30K and 41K only), Air-Tight

DIMENSIONS:

  • ID 4″; OD 4 7/8″; Thickness 1/2″
  • Cut out: 4″ to 4 1/4″
  • Junction Box Dimensions (with driver inside): 3 3/4″ x 3 3/8″ x 1 1/2″

Suitable for damp locations and soffit installations.

Rough-in Plates

  • RIP4
  • MP4-2
  • MP4
  • FRP4
  • GR4
  • GR4-BK

Extension Cables

  • EXC10

120-347v / 0-10v Dimmable Driver

  • LLL-LD1535TB

Specification Sheets
LB4R

pdf files
LB4R/30K | LB4R/41K | LB4R/32K dim to warm

IES files
LB4R/30K | LB4R/41KLB4R/32K dim to warm


Links to Energy Star: LB4R/30K | LB4R/41K
