Lotus LED Lights - 4" Round HO Deep Regressed Trimless, 18Watt

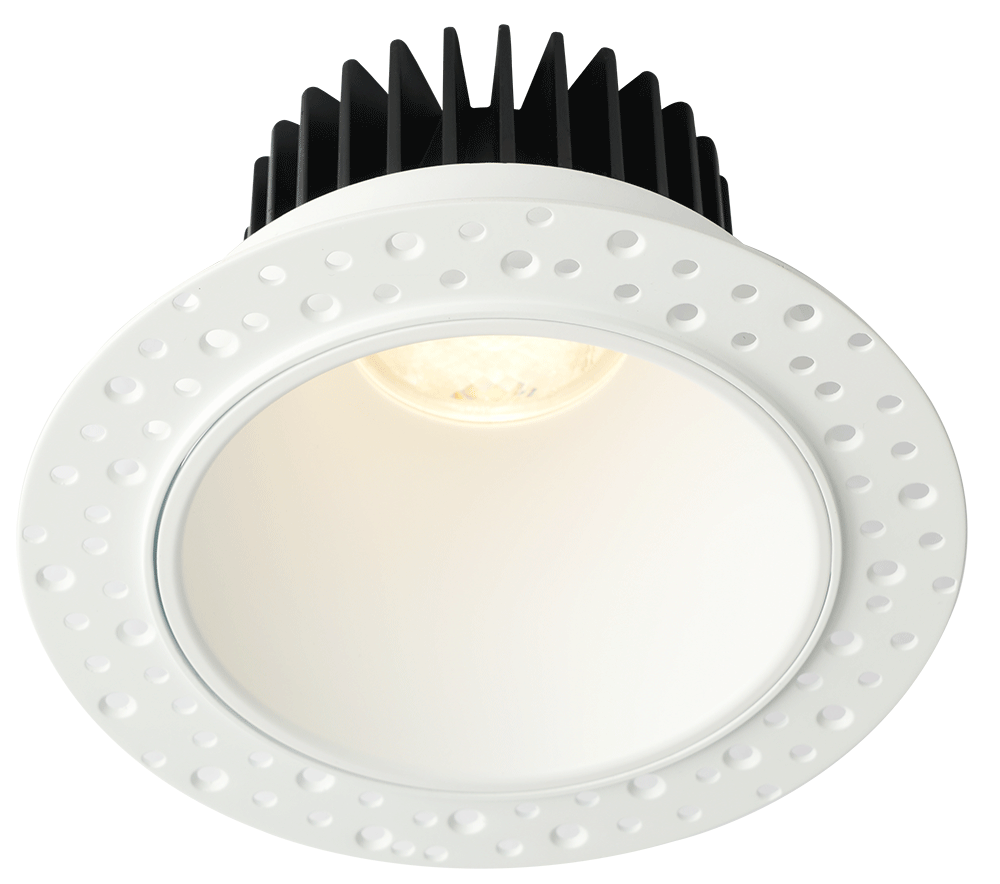

Lotus LD4R-HO-IT – 18 Watt 4″ High Output Round Deep Regressed LED Downlight – Trimless Model – 120V

SKU : N/A Categories : 4" Fixtures, 4" Indoor Fixtures, 4" Outdoor Fixtures, 4" Regressed, Deep Regressed, Deep Regressed Indoor Fixtures, Deep Regressed Outdoor Fixtures, Indoor Lighting, Outdoor Lighting Tags : LD4R-HO-IT, lotus-led-lights Brand: Lotus LED Lights

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :

CAD$ 127.82

Reflector Option

White
Silver
Black

Color Temperature

2700K
3000K
4000K
3500K
5000K
DTW (3000K down to 2000K)
5CCT (2700K, 3000K, 3500K, 4000K, 5000K)
DTW (3000K down to 1800K)

Beam Angle

15°
30°
60°

Clear

The new deep regressed models by Lotus LED Lights provide efficient LED illumination without glare in an elegantly designed downlight. The deep reflector and trimless design provides an architectural aesthetic, and open-plenum rated armored cable connection are suitable for commercial application. Being IC-rated, these lights can be installed right into the ceiling without housing and, being only 3.5″ deep, can be installed where ceiling space is limited. A high CRI of 90+ means you’ll enjoy true color rendering in the area of illumination. Comes standard as 120V dimmable, with optional 0-10V dimmable driver available. Requires use of flanged rough-in-plate (FRP412) – see recommended accessories.

The LD4R-HO-IT is a 4″ round 18 watt deep regressed trimless LED downlight, available in silver, black and white reflector with the following features:

Includes standard dimmable driver
Triac Dimmable with most CL dimmers 120V input
0-10V Dimmable Option 120V – 347V input
IC-rated
Wet and damp location rated
High CRI of 90+ for true color rendering
Open plenum rated armored cable and metal connectors
Fast and easy installation and no junction box required
Air-tight
Energy Star
Title-24 certified
50,000 hour rated
10 year residential / 5 year business application warranty

Product Information

Technical Specifications
Accessories
Downloads

CONSTRUCTION:

4″ Round Trimless Deep Regressed LED – Elegant Design Without Glare. Driver Inside Connection Box with Romex Quick Connectors.
One driver for every fixture required.

MOUNTING:
Please watch the installation video.
Ceiling Clearance Required: 3 1/2″

Default Driver Input Voltage: 120V AC TRIAC Dimmable
Optional Driver Input Voltage: 120V-347V AC 0-10V Dimmable
Power factor: 0.98
Energy Used: 18W
Halogen equivalent: 150W
Beam Angle: 30°
Light Options: 2700K, 3000K, 3500K, 4000K, 5000K, 5CCT user selectable, Dim to Warm 3000-2000K or 3000-1800K
Light output 18W model: Warm White 1500 lm, Soft White 1550 lm, Bright White 1600 lm, Neutral White 1650 lm, Daylight White 1700 lm, Dim to Warm 3000-2000K1150 lm, Dim to Warm 3000-1800K 1250 lm
CRI: 90+
Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
Compliance: cULus, Energy Star (single CCT only), T24

DIMENSIONS:
