The new deep regressed models by Lotus LED Lights provide efficient LED illumination without glare in an elegantly designed downlight. The deep reflector and thin trim design provides an architectural aesthetic, and open-plenum rated armored cable connection are suitable for commercial application. Being IC-rated, these lights can be installed right into the ceiling without housing and, being only 3.5″ deep, can be installed where ceiling space is limited. A high CRI of 90+ means you’ll enjoy true color rendering in the area of illumination. Comes standard as 120V dimmable, with optional 0-10V dimmable driver available. Requires use of flanged rough-in-plate (RIP334) – see recommended accessories.

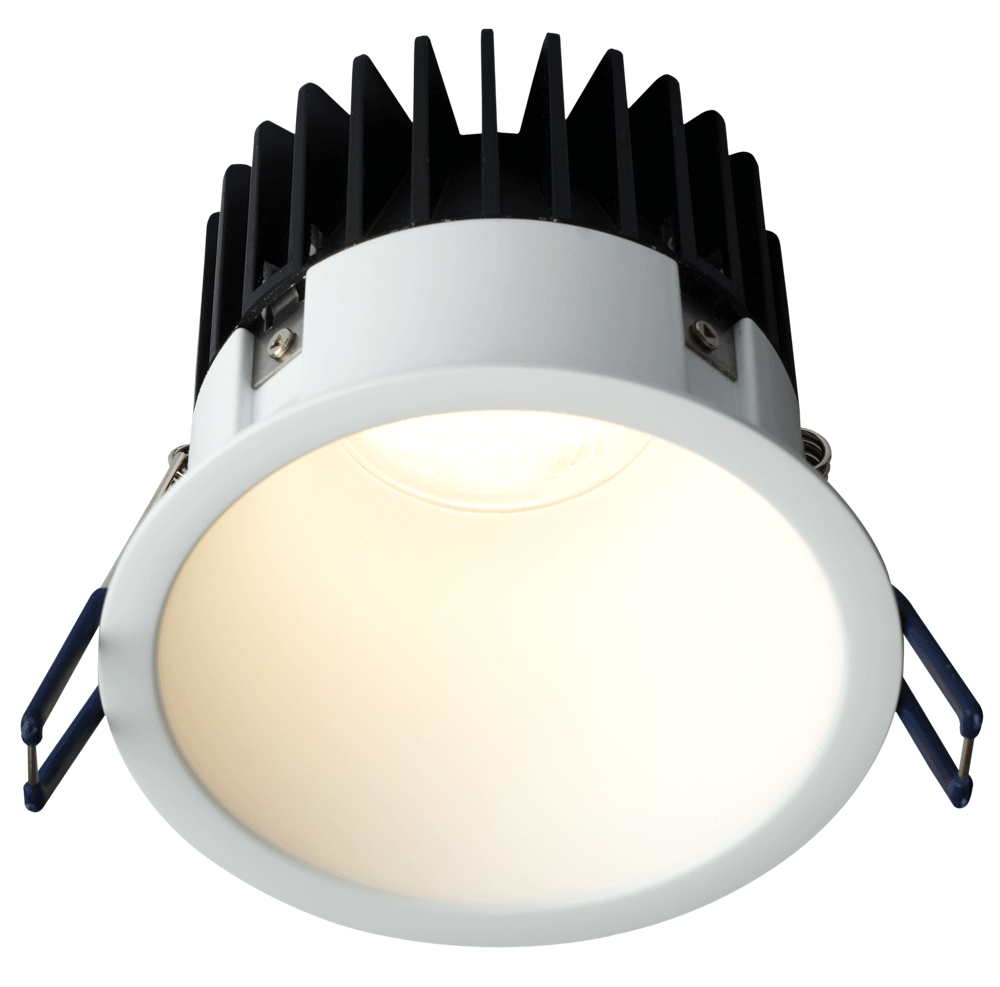

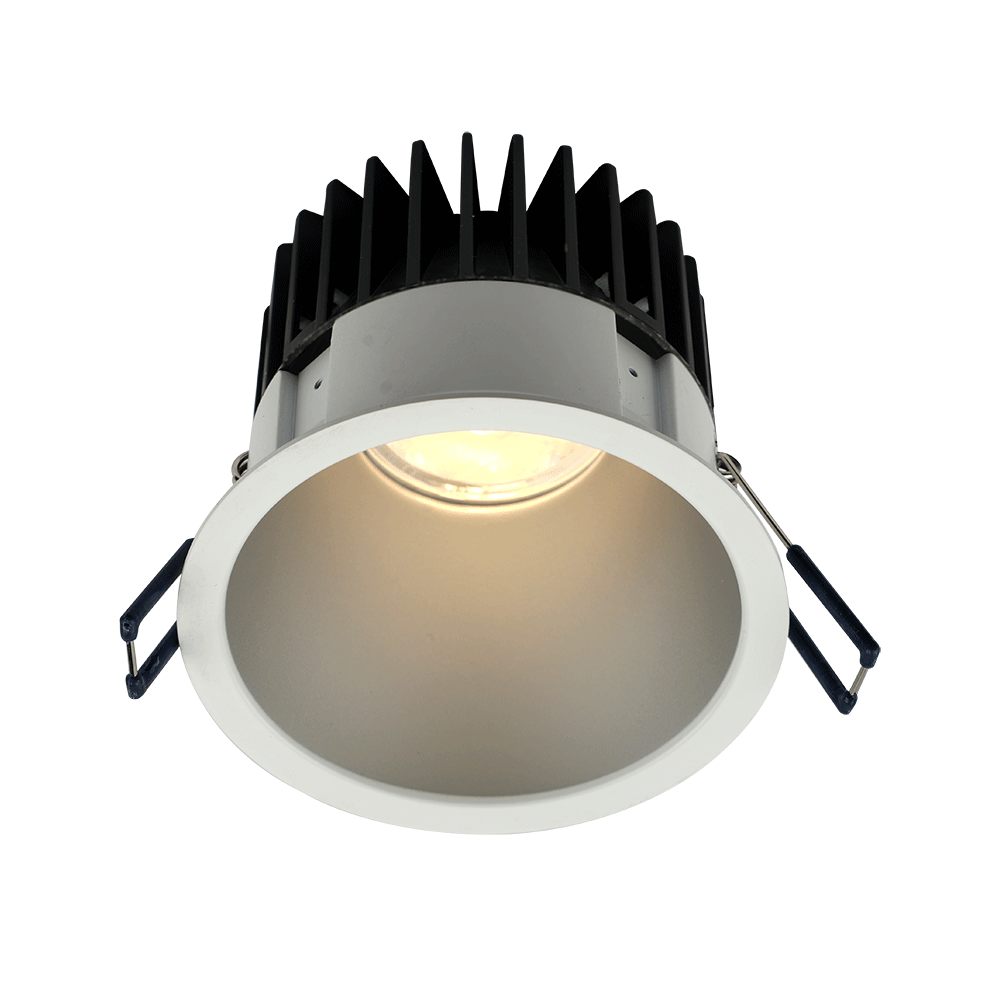

The LD4R-HO-TT is a High Output 4″ round 18 watt deep regressed thin trim LED downlight, available in silver, black and white reflector with the following features:

• 18W LD4R-HO-TT
• 4″ Round Deep Regressed LED – Elegant Design Without Glare
• 3/8″ Trim for High-End Contemporary Installations
• Interchangeable Trims With High End Finishes
• Armoured Cable & Metal Connectors – Open Plenum Rated
• Type IC, Air-Tight & Wet Location – No Housing Required
• 3 1/2″ thick – fits in limited ceiling space
• Triac Dimmable with most CL dimmers 120V input
• 0-10V Dimmable Option 120V – 347V input
• Light Options: 2700K, 3000K, 3500K, 4000K, 5000K, 5CCT user selectable, Dim to Warm 3000-2000K or 3000-1800K
• Light output 18W: 2700K-1500 lm, 3000K-1550 lm, 3500K-1600 lm, 4000K-1650 lm, 5000K-1700 lm, Dim To Warm 3000K to 2000K-1150 lm, Dim To Warm 3000K to 1800K-1250 lm
• Beam Angle: 30° (default)
• Driver Inside Connection Box with Romex Quick Connectors
• Warranty: 10 Year Residential, 5 Year Commercial Installations
• cULus certified and Energy Star (single CCT only) approved
