Lotus LED-2-S15W-2700K-38D – 15 Watt 2″ LED Recessed Downlight – 38° – 2700K – 120V

SKU : LED-2-S15W-2700K Categories : , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 90.71

The new Lotus LED Lights 2″ recessed designer series downlight is an innovative, high-performance downlight that is IC-rated and can be installed directly into the ceiling with no housing required. Being only 4.4″ tall, this fixture can be installed where ceiling space may be limited. The reflector and lens of each light are interchangeable, and can be easily switched out as your style preferences or design scheme changes through time. A high CRI of 90+ means you get the truest color rendering in the illuminated area. Perfect for both commercial and residential applications.

The LED-2-S15W-2700K is a 2″ round or square 15 watt 38° in 2700K LED downlight, available in multiple combinations of reflectors and trims and with the following features.

  • 120V operation and dimming
  • 2700K Color Temperature
  • Fast and easy installation
  • Dimmable on TRIAC dimming systems down to 10%
  • High CRI of 90+ for true color rendering
  • Airtight, IC-rated for insulated ceilings, and damp location approved
  • WET IP54 Rated if purchased with 2RST Shower trim
  • Energy Star
  • Title-24 certified
  • 50,000 hour rated
  • 5 year warranty

Product Information

CONSTRUCTION:
Round & Square 2″ fixture with integral Driver in Connection Box.
One driver for every fixture required.

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Ceiling Clearance Required: 4 1/2″

  • Default Driver Input Voltage: 120V AC 50/60 Hz (Dimmable – TRIAC Dimmers 10%-100%)
  • Energy Used: 15W
  • Halogen equivalent: 100W
  • Beam Angle: 38°(stock) or 24°(custom)
  • Light colour options: Warm White 2700K, Soft White 3000K, Neutral White 4000K
  • Light output: Warm White 980 lm, Soft White 1000 lm, Neutral White 1020 lm
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Approved Locations: Insulated Ceilings & Damp Locations
  • WET IP54 Rated if purchased with 2RST Shower trim
  • Rated: cETLus, Energy Star, T24

DIMENSIONS:

  • ID 1 7/8″, OD 3 1/8″;Thickness of Trim 1/8″
  • Thickness of Reflectors 1″
  • Cut out: 2 3/4″
  • Junction Box Dimensions (with driver inside): 3 3/4” x 2 1/4” x 1 1/2”

Suitable for Insulated Ceiling & Damp Locations.

  • Mounting Plate

    • cat #MP234

    Jumper Cables

    • 10ft
    • cat #JC10

Specification Sheets

Installation Instructions

PDF Photometric file 30K model

IES Photometric file 30K model


Link to Energy Star: LED-2-S15W

3 Step Ordering Guide

For Example: LED-2-S15W-27K-2RRWH-2RTWH

CCT:

27K / 30K / 40K

Reflector

2RRWH – Round Reflector White   / 2RRBK – Round Reflector Black    / 2RRAK – Round Reflector Alzak   / 2RRBZ – Round Reflector Bronze   / 2RRCH – Round Reflector Chrome

Trims

Round:

2RTWH – Round Trim White / 2RTBK – Round Trim Black / 2RTBN – Round Trim Brush Nickel / 2RTBZ – Round Trim Bronze / 2RTCP – Round Trim Copper / 2RTCH – Round Trim Chrome

Highlights:

2RSA – Slot Aperture / 2RPH – Pinhole / 2RWW – Wall Wash / 2RSH – Square Hole / 2RST – Shower Trim





Video

Customer Reviews

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

You may also like…

Lotus Goof Ring for 3″ Round Models – 4.5″ Cover Area – GR3 – Black

Lotus Goof Ring for 3″ Round Models – 4.5″ Cover Area – GR3 – Black

CAD$ 5.88 Read more

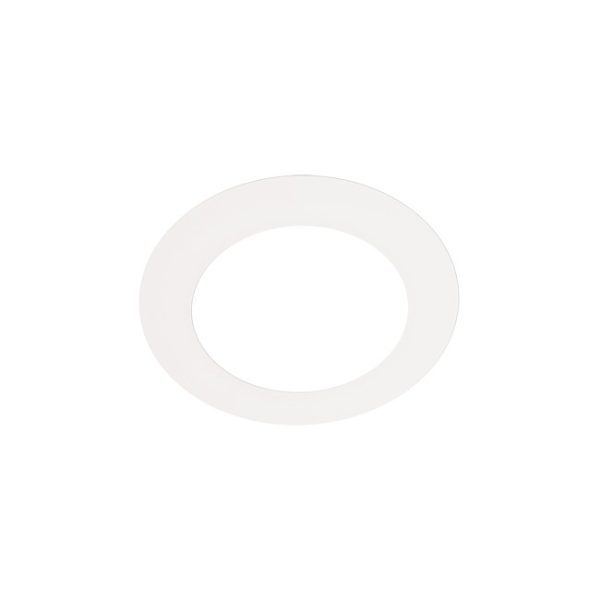

Lotus Goof Ring for 3″ Round Models – 4.5″ Cover Area – GR3

Lotus Goof Ring for 3″ Round Models – 4.5″ Cover Area – GR3

CAD$ 5.88 Read more
The GR3 is for use with the Lotus LED Lights 3” round recessed fixtures. This goof ring can be used on diameters up to 4.5”

Downloads:

Certifications
Lotus 10′ Jumping Cable for 2″ Designer Series / 4″ High Output Recessed Downlights – JC-10

Lotus 10′ Jumping Cable for 2″ Designer Series / 4″ High Output Recessed Downlights – JC-10

CAD$ 4.96 Read more
Utilize this 10′ low voltage extension cable with your Lotus LED Lights low-voltage downlights
  • Length – 10 feet
  • Inter-linkable up to 40 feet maximum extension
  • 18 AWG
  • UL listed

Downloads:

Certifications

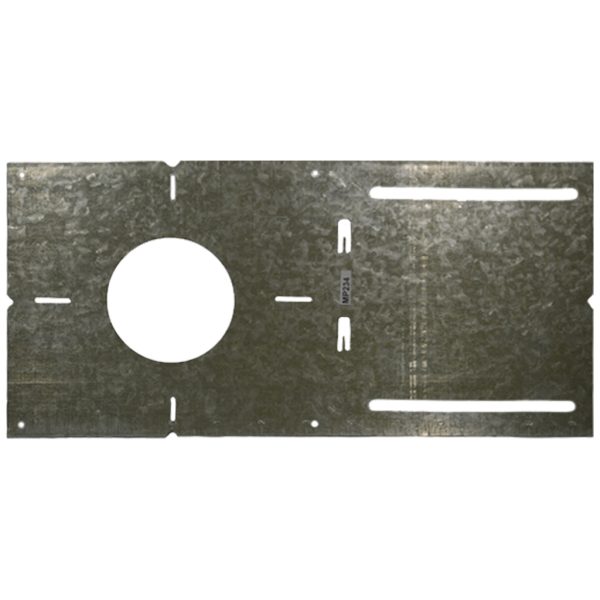

Lotus Mounting Plate for Lotus 2″ – MP234
