Lotus LED-2-S15W-L5CCT-24D – 15 Watt 2″ Trimless Recessed LED Downlight – 24°

SKU : N/A Categories : , , , , , Tags : , , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 113.65

The new Lotus LED Lights trimless 2″ downlights is an innovative, high-performance downlight that is IC-rated and can be installed directly into the ceiling with no housing required. Being only 5″ tall, this fixture can be installed where ceiling space may be limited. Being CCT-tunable, they allow for the installer to easily select between 5 different white light color temperatures using a switch on the driver to best suit the application or end-users preference. A high CRI of 90+ means you get the truest color rendering in the illuminated area. Perfect for both commercial and residential applications.

The LED-2-S15W-L5CCT & LED-2-S15W-3018K Round or Square 15 watt 24° LED Trimless downlight, 5CCT-tunable or DTW with the following features.

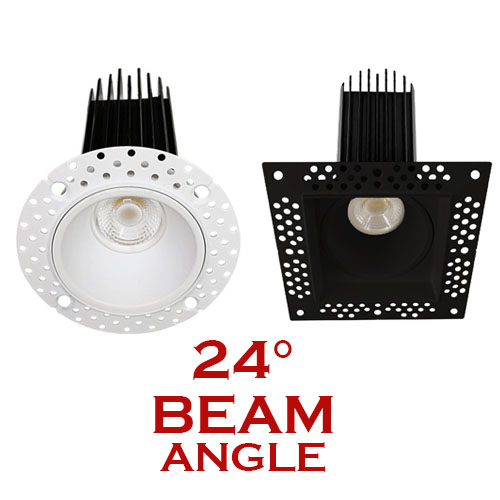

  • 24° Beam Angle

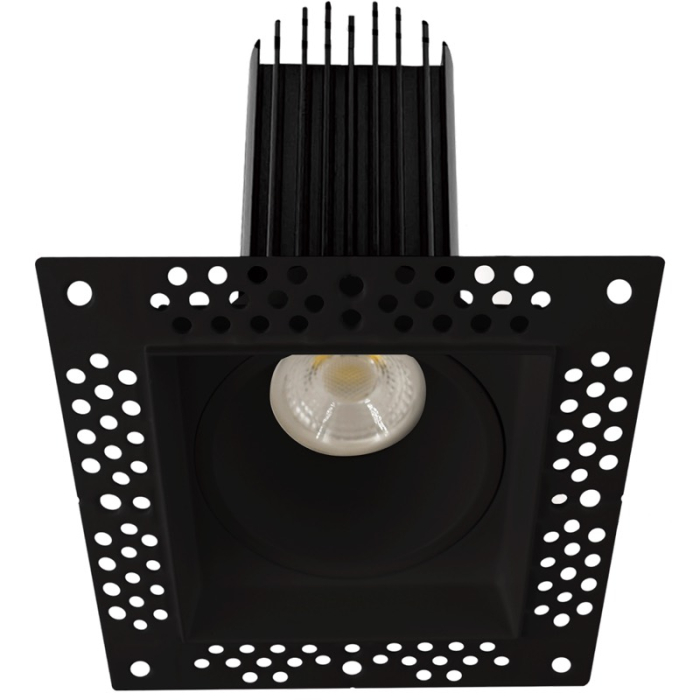

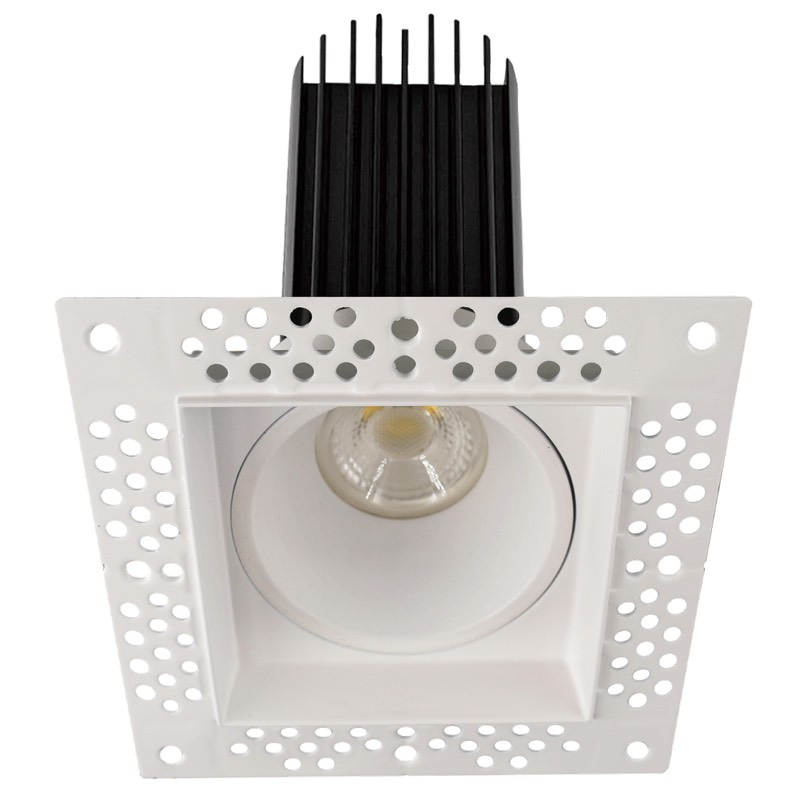

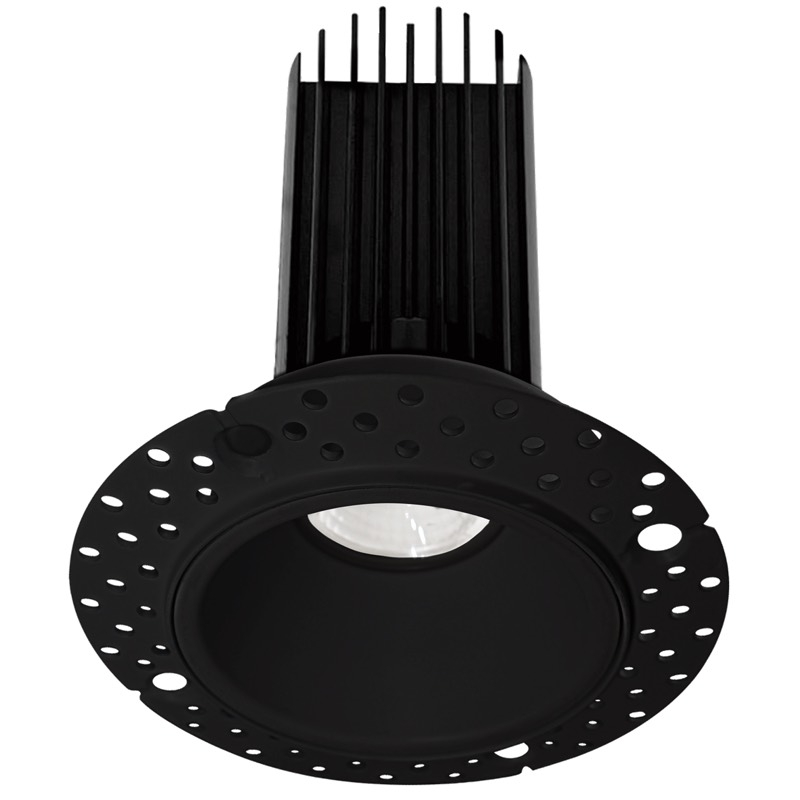

  • Choose between Round or Square Trim option
  • Choose between 5CCT or Dim To Warm model
  • 120V operation and dimming
  • User Selectable 5CCT – 2700K | 3000K | 3500K | 4000K | 5000K
  • Dim To Warm model from 3000K all the way down to 1800K
  • Fast and easy installation
  • Dimmable on TRIAC dimming systems down to 10%
  • High CRI of 90+ for true color rendering
  • Airtight, IC-rated for insulated ceilings, and damp location approved
  • Energy Star
  • Title-24 certified
  • 50,000 hour rated
  • 5 year warranty

Product Information

CONSTRUCTION:

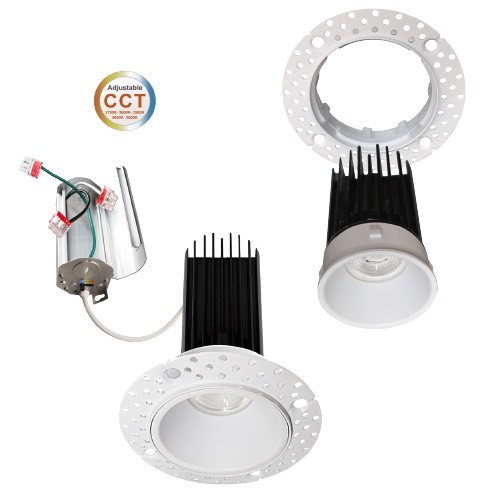

2″ Trimless Round / Square Recessed LED Fixture.
Driver inside connections box included – one driver for every fixture required.

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Ceiling Clearance Required: 5″

  • Input Voltage: 120V AC
  • Triac Dimmable 100% – 10%
  • Energy Used: 15W
  • Halogen equivalent: 100W
  • Beam Angle: 38°(default) or 24°
  • Light color options: 5CCT User Selectable 2700-3000-3500-4000-5000K, or Dim to Warm 3000K-1800K
  • Light output: 820 – 870 – 950 – 985 – 960 lm, DTW 800 lm
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Approved Locations: Insulated Ceilings & Wet Locations
  • Certifications: cETLus, Energy Star, T24
  • Warranty: 5 Year

DIMENSIONS:

  • ID 2 1/2″, OD 3 1/2″; Depth 5″
  • Cut out: 2 5/8″
  • Junction Box Dimensions (with driver inside): 5” x 2” x 2”

Suitable for Insulated Ceiling & Wet Locations.

  • Mounting Plate

    • model #RIP212

    Jumper Cables

    • 10ft
    • model #JC-5CCT-10

Specification Sheets

Installation Instructions

Photometric PDF files:

PDF 2700K | PDF 3000K | PDF 3500K | PDF 4000K | PDF 5000K

Photometric IES files:

IES 2700K | IES 3000K | IES 3500K | IES 4000K | IES 5000K

Video
