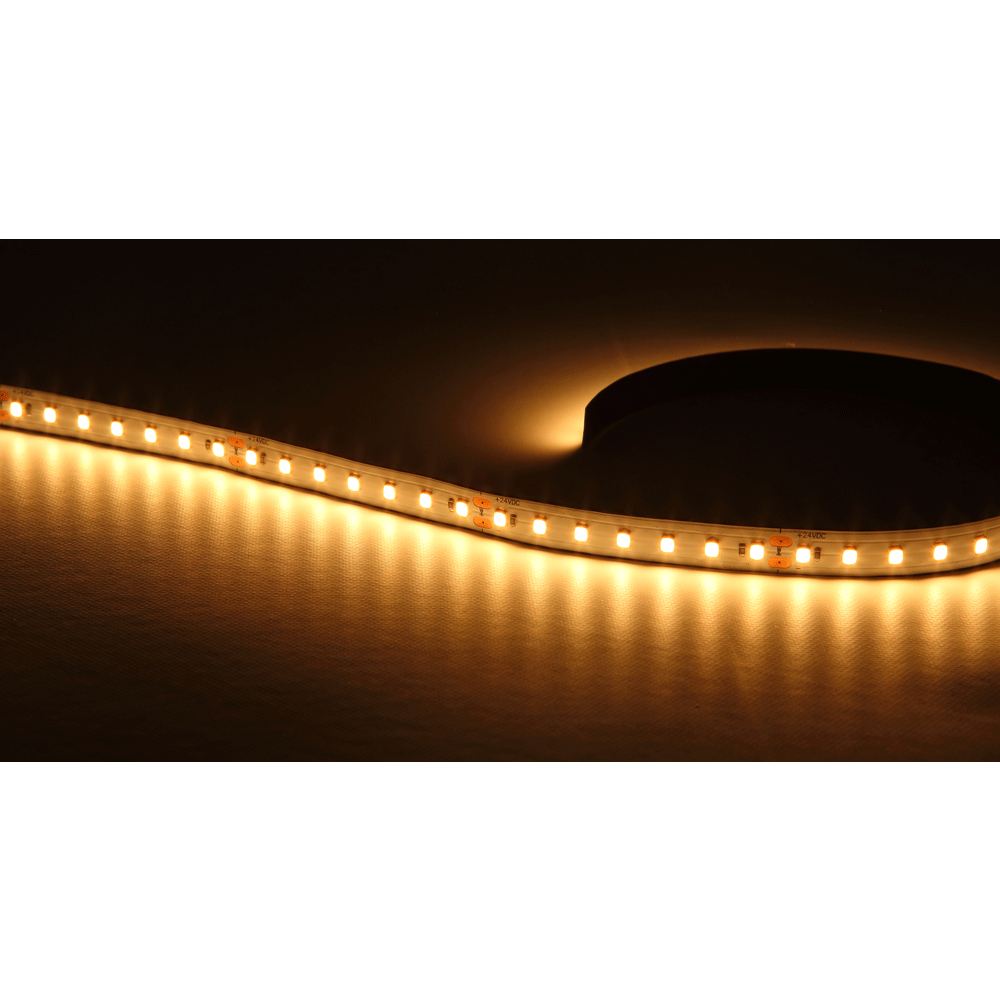

Lotus LED Lights Tape Light – ES-FS2835C-112-IP20 – Full Spectrum

SKU : N/A Categories : , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 152.46

LED tape by Lotus LED Lights is a great option for your cove, under cabinet, decorative and other general ambient lighting application. Full Spectrum High Efficiency LED Tape, natural and vivid color rendering closely matching natural light. Every foot of tape in this 16.4′ reel uses 4.4 watts. Each reel is backed with 3M brand adhesive tape to ensure a strong, durable connection to whatever surface it is applied to, and their high CRI of 97+ ensures true color rendering in the area of illumination. Requires 24V DC power supply.

The ES-FS2835C-112-IP20, Full Spectrum CRI 97+ LED Tape, 2V 4.4W/ft 10mm, available in 27K, 30K, 40K and 50K with the following features:

  • Full Spectrum High Efficiency LED tape
  • Natural and vivid color rendering closely matching natural light
  • CRI > 97, R1-R15 > 90, no UV light and no low blue wavelenghts
  • Reinforced design for stable performance when bending & twisting
  • 3 oz copper PCB and real gold wires for superb light maintenance
  • Wires on both ends, options of 16ft and 100 ft reels
  • 4.4W/ft, in stock 2700K, 3000K, 4000K & 5000K
  • Double sided adhesive 3M tape
  • Warranty: 5 Year Indoor / 3 Year Outdoor
  • cULus certified

Note: Suitable for dry locations only. Requires 24V DC power supply (see recommended accessories for Lotus brand – also works with any other compatible driver). WARNING: LED tape gets hot. Mounting firmly and securely on smooth and thermo conductive surface such as metal or glass is critical for proper thermal management and long life. Not following these instructions voids the warranty.

Product Information

MOUNTING:
Installation surface must be smooth, clean and dry.
Double sided adhesive 3M tape and wires on both ends.

  • Input Voltage: 24V DC
  • Power: 4.4 W/ft
  • Maximum Connecting Length 16.4 ft / 5 meters
  • Beam Angle: 135°
  • Light color options Warm White 2700K, Soft White 3000K, Neutral White 4000K and Daylight White 5000K
  • CRI > 97, R1-R15 > 90, no UV light and no low blue wavelenghts
  • Operating Temperature: -13°F (-25°C) to +113°F (+45°C)
  • LED Operation Type: Constant Voltage
  • Certification: cULus
  • Warranty: 5 Year Indoor / 3 Year Outdoor

APPLICATIONS:

  • Indoor linear light installations with superb light quality

DIMENSIONS:

  • 3/8″ wide; 16 ft or 100 ft lengths, 2 3/8″ cuttable increment

Suitable for Indoor and Dry Locations

Spec Sheet
