Lotus LRG6-6RSL-HO – 18 Watt 6″ High Output Sloped LED Gimbal – 120V

SKU : N/A Categories : , , , , , , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 132.44

Save on labor with the Lotus LED Lights 6″ round sloped regressed LED gimbal downlight. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place with no housing required. These 30º sloped trim models are ideal for 10º to 50º sloped ceilings. They are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. A high CRI of 90+ provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings, creating wall wash effects and highlighting artwork or other features. Watch the below video to learn more.

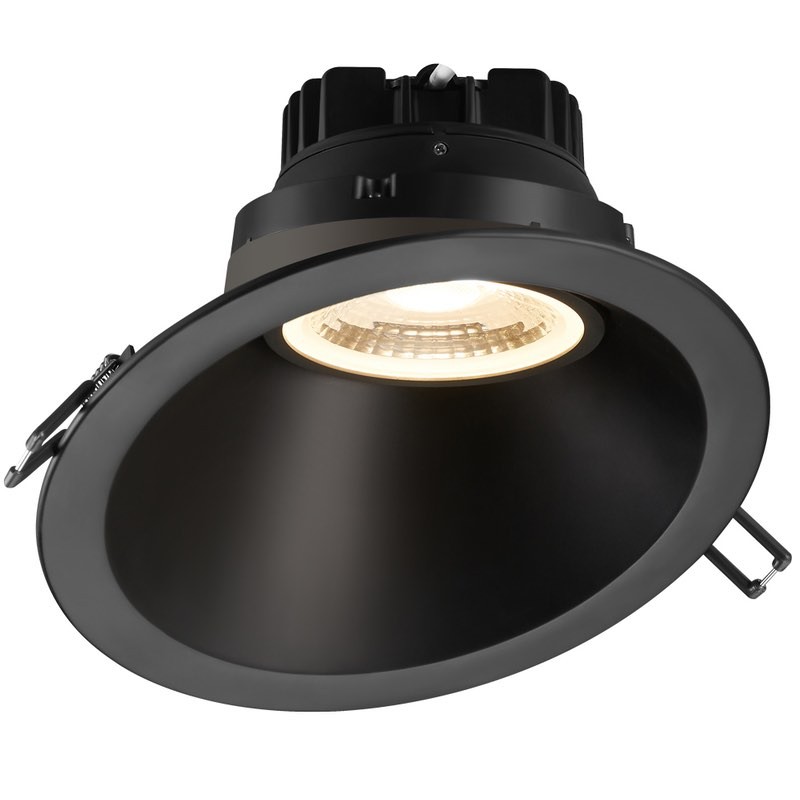

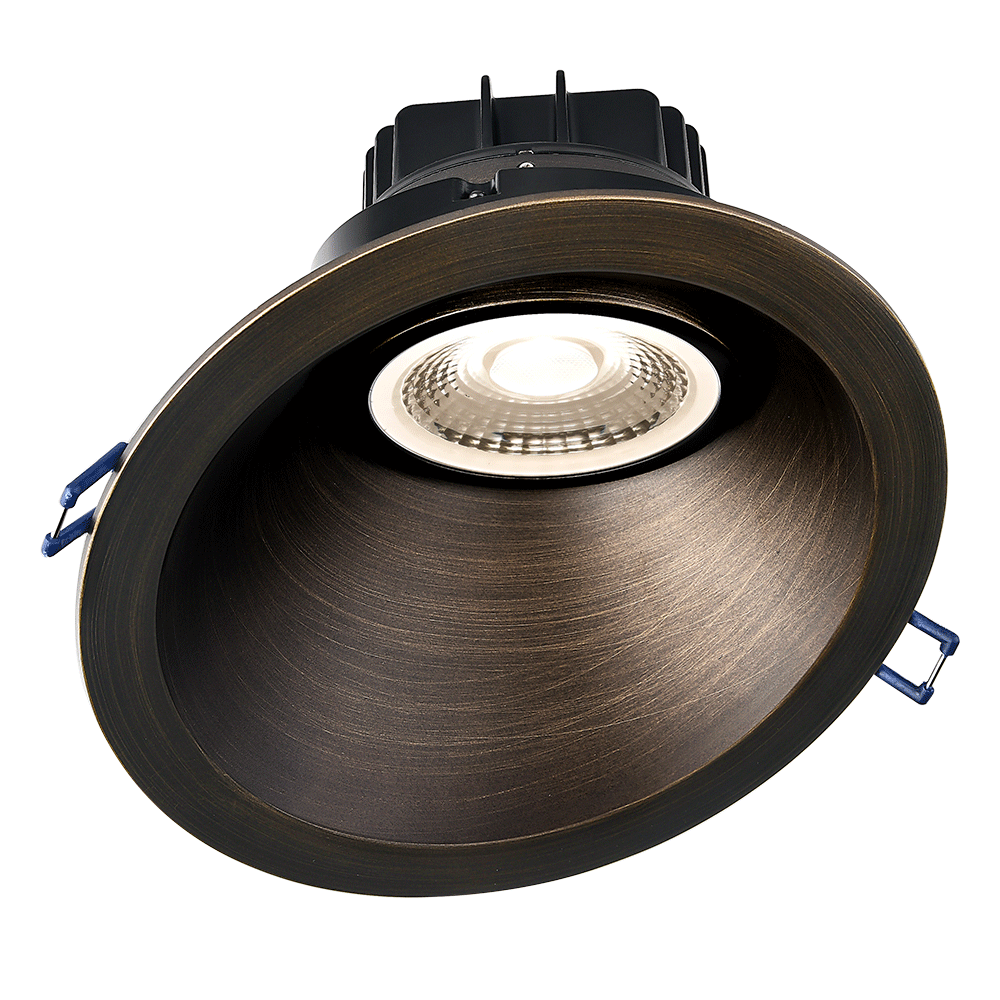

The LRG6-6RSL-HO is a 6″ round 18 watt high output sloped regressed LED gimbal downlight available in White, Black and Oil Rubbed Bronze finish with the following features:

  • Includes standard dimmable driver
  • 30º sloped trim suitable for 10º to 50º sloped ceilings
  • 38° beam angle / 20° tilt / 360° rotation
  • 4″ thin – install where ceiling space is limited
  • IC rated – no housing required
  • High CRI of 90+ for true color rendering
  • IP54 rated
  • Suitable in wet and damp locations
  • Oil based spray painted – scratch resistant and smooth finish
  • Energy Star
  • Title-24 certified
  • Operating temp: -40º to 104º F
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty

Product Information

CONSTRUCTION:
6″ Sloped Round Regressed High Output Gimbal LED.
30° Sloped Trim for Wall Washing and Sloped Ceilings from 10° to 50°.
Class 2 Isolated external driver factory installed inside junction box. One driver for every fixture required.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 3 1/2″

  • Default Driver Triac Dimmable: 120V AC Input
  • Optional Driver 0-10V Dimmable: 120V-347V AC Input
  • Energy Used: 18W
  • Beam Angle: 38° Beam with 20° tilt and 360° rotation
  • Light colour options: Warm White 2700K, Soft White 3000K, Bright White 3500K, Neutral White 4100K, Daylight White 5000K, Dim to Warm 3000K to 2000K, 5CCT user selectable 2700K to 5000K
  • Light output 18W: Warm White 1500 lm, Soft White 1550 lm, Bright White 1600 lm, Neutral White 1650 lm, Daylight White 1700 lm, Dim to Warm 1150 lm
  • CRI 90+
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus Listed, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Energy Star (except Dim to Warm and 5CCT), Air-Tight

DIMENSIONS:

  • ID 6 1/4″; OD 7″; Thickness 4″
  • Cut out: 6 1/4″
  • Junction Box Dimensions (with driver inside): 3 3/4″ x 3 3/8″ x 1 1/2″
  • Junction Box Wire Capacity: Max 5 No 12 AWG or 8 No 14 AWG

Suitable for wet locations and soffit installations.

120-347V / 0-10V Dimmable Driver

  • LLL-LD2050T

Mounting Plates

  • Flanged: cat # FRP6
  • Flat: cat # MP6-2
  • Flat: cat # RIP6

Jumper Cables 6ft & 20ft

  • cat # EXC6
  • cat # EXC20



Specification Sheets
LRG6-HO-6RSL

Photometric PDF files single CCT

PDF file LRG6-27K-HO | PDF file LRG6-30K-HO | PDF file LRG6-35K-HO | PDF file LRG6-40K-HO | PDF file LRG6-50K-HO | PDF file LRG6-32K-HO

Photometric PDF files 5 CCT

PDF file LRG6-HO-5CCT(2700K) | PDF file LRG6-HO-5CCT(3000K) | PDF file LRG6-HO-5CCT(3500K) | PDF file LRG6-HO-5CCT(4000K) | PDF file LRG6-HO-5CCT(5000K)

Photometric IES files single CCT

IES file LRG6-27K-HO | IES file LRG6-30K-HO | IES file LRG6-35K-HO | IES file LRG6-40K-HO | IES file LRG6-50K-HO | IES file LRG6-32K-HO

Photometric IES files 5 CCT

IES file LRG6-HO-5CCT(2700K) | IES file LRG6-HO-5CCT(3000K) | IES file LRG6-HO-5CCT(3500K) | IES file LRG6-HO-5CCT(4000K) | IES file LRG6-HO-5CCT(5000K)

Links to Energy Star

LRG6-27K-HO | LRG6-30K-HO | LRG6-35K-HO | LRG6-40K-HO | LRG6-50K-HO
