Lotus LRG6-HO – 18 Watt 6″ High Output Regressed LED Gimbal – 120V

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 100.10

Save on labor with the Lotus LED Lights 6″ round regressed LED gimbal downlight. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place with no housing required. These recessed fixtures are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. Being CCT tunable, they allow for you to select between 5 different white light color temperatures- from warm 27K to daylight 50K and every color temperature in between. A high CRI provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings and highlighting artwork or other features.

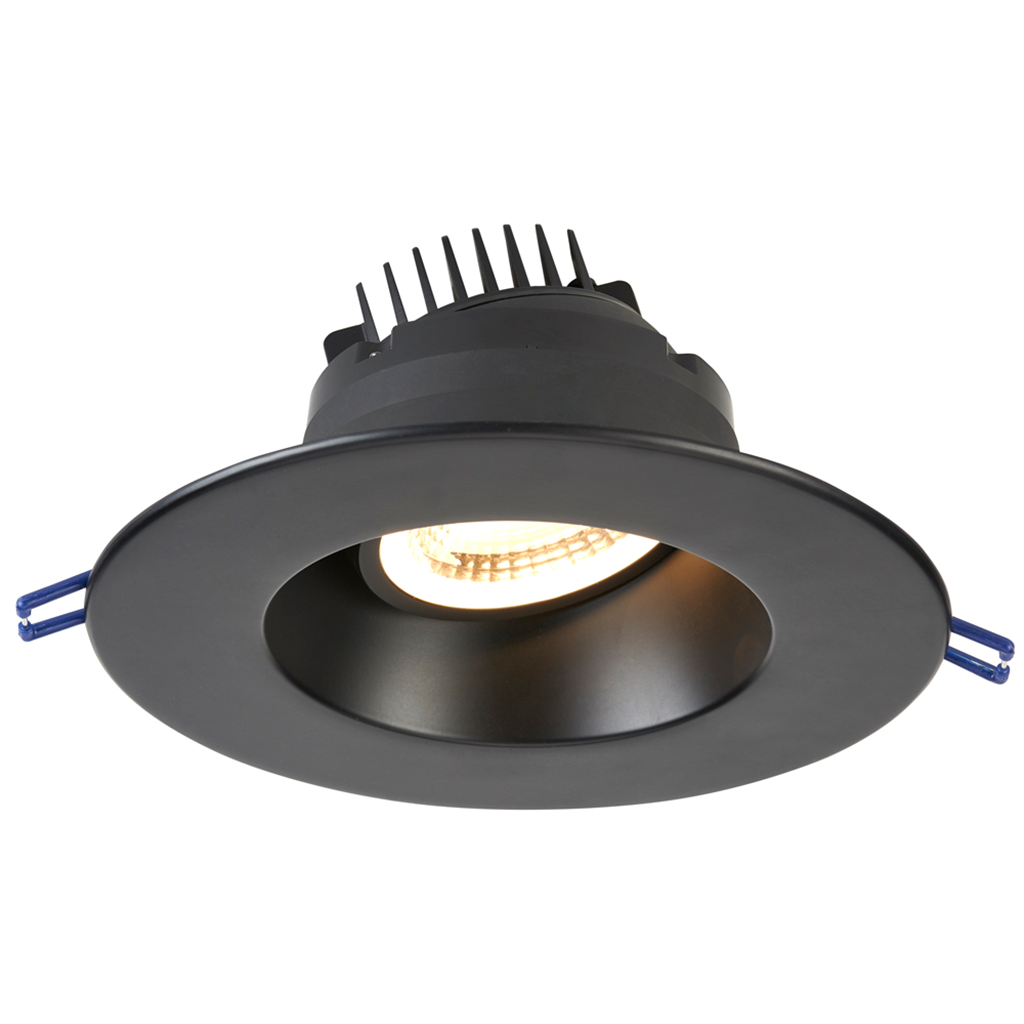

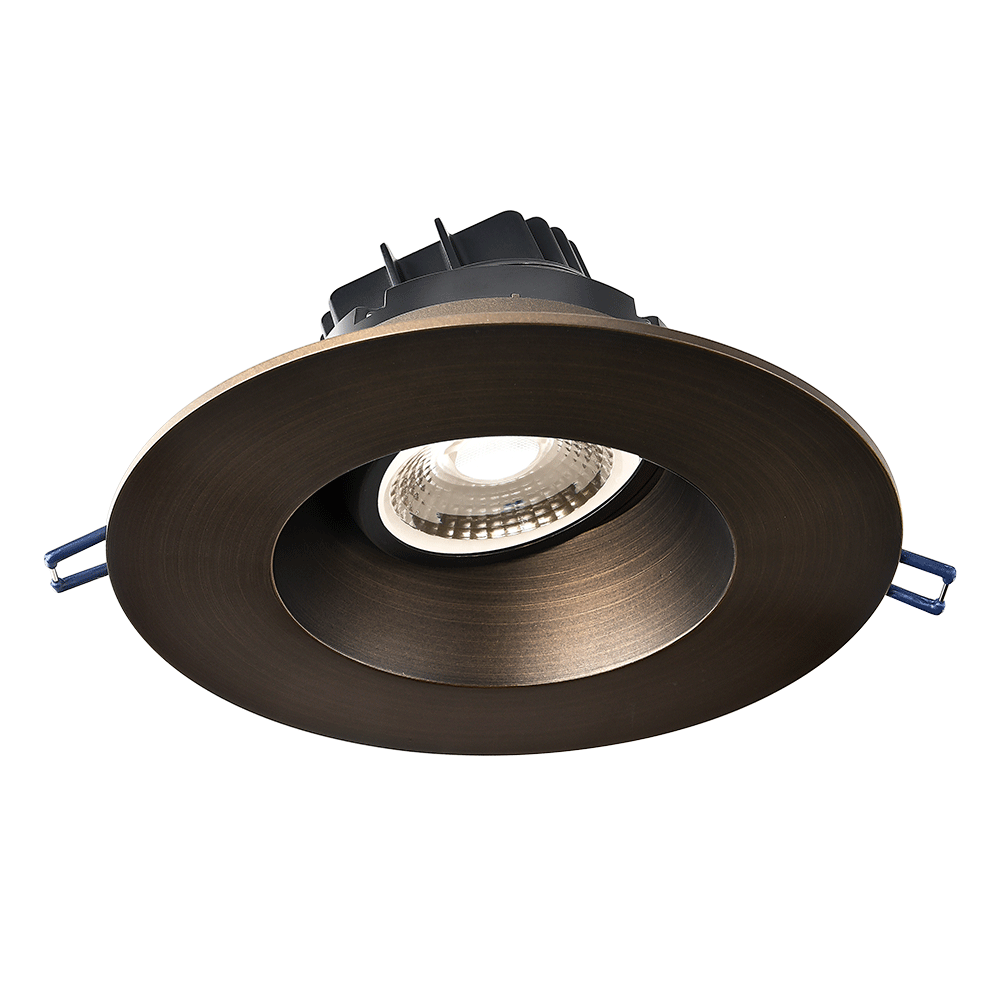

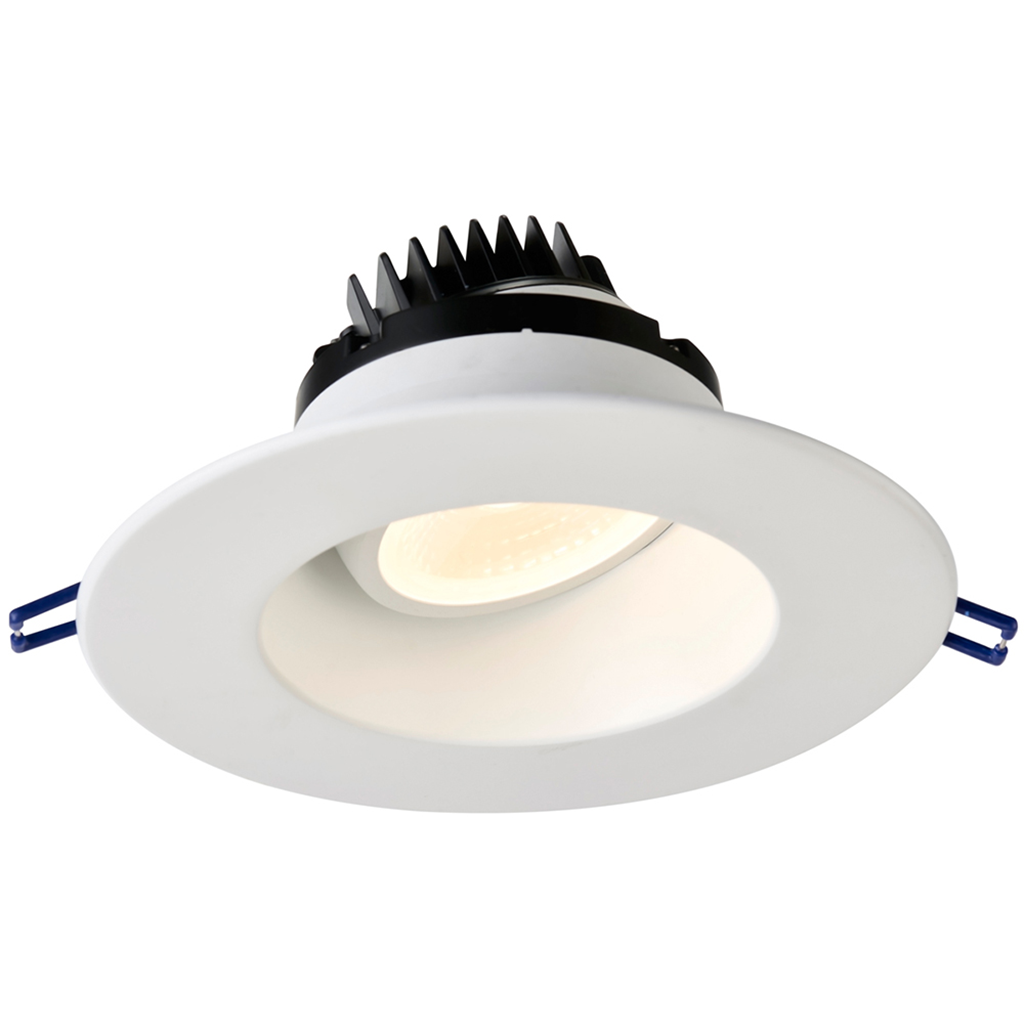

The LRG6-HO is a 6″ round 18 watt regressed LED gimbal downlight available in White, Black and Oil Rubbed Bronze finish with the following features:

  • Includes standard dimmable driver
  • 2700K, 3000K, 3500K, 4000K, 5000K, Dim To Warm 3000K-2000K or 3000K-1800K, and 5CCT
  • 38° beam angle with 10° tilt each direction and 360° rotation
  • 3.5″ thin – install where ceiling space is limited
  • IC rated – no housing required
  • High CRI of 90+ for true color rendering
  • IP54 rated
  • Suitable in wet and damp locations
  • Oil based spray painted – scratch resistant and smooth finish
  • Title-24 certified
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty

Product Information

CONSTRUCTION:
Round 6″ Regressed High Output Gimbal fixtures with integral LEDs. Class 2 Isolated external driver factory installed inside junction box.
One driver for every fixture required.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 3 1/2″

  • Default Driver: 120V – Triac Dimmable with most CL dimmers
  • Optional Driver: 120V-347V 0-10V Dimmable
  • Energy Used: 18W
  • Beam Angle: 38° Beam with 20° tilt and 360° rotation
  • Light colour options: Warm White 2700K, Soft White 3000K, Bright White 3500K, Neutral White 4100K, Daylight White 5000K, Dim to Warm 3000K to 2000K, 5CCT user selectable 2700K to 5000K
  • Light output 18W: Warm White 1500 lm, Soft White 1550 lm, Bright White 1600 lm, Neutral White 1650 lm, Daylight White 1700 lm, Dim to Warm 1150 lm
  • CRI 90+
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus Listed, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Energy Star (except Dim to Warm and 5CCT), Air-Tight

DIMENSIONS:

  • ID 5 1/4″; OD 7 1/2″; Thickness 3 1/2″
  • Cut out: 5 1/4″ to 6″
  • Junction Box Dimensions (with driver inside): 3 3/4″ x 3 3/8″ x 1 1/2″
  • Junction Box Wire Capacity: Max 5 No 12 AWG or 8 No 14 AWG

Suitable for wet locations and soffit installations.

120-347V / 0-10V Dimmable Driver

  • LLL-LD2050T

Mounting Plates

  • Flanged: cat # FRP6
  • Flat: cat # MP6-2
  • Flat: cat # RIP6

Jumper Cables 6ft & 20ft

  • cat # EXC6
  • cat # EXC20
