Louts LED Lights – AD-108 – 1Watt – 1″ Mini Puck LED Light – 12v

SKU : N/A Categories : , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 48.51

Lotus LED Light’s puck lights are an innovative and versatile option for your under cabinet, cove, or other small area application where you require lighting that is slim in size and bright in lumen output. These puck lights can be surface or recessed mounted, and can be easily connected together using the included 6-port hub and plug-in (non-dimmable) driver. With a CRI of 90+, these puck lights provide true color rendering in area of illumination.

The AD-108 is available in 5Pack or 6Pack available in 3K and 4K with the following features:

  • 1″ Mini Puck LED 12V DC
  • 70 lm with CRI 90+
  • 5 pack single units or 6 pack with plug-in driver

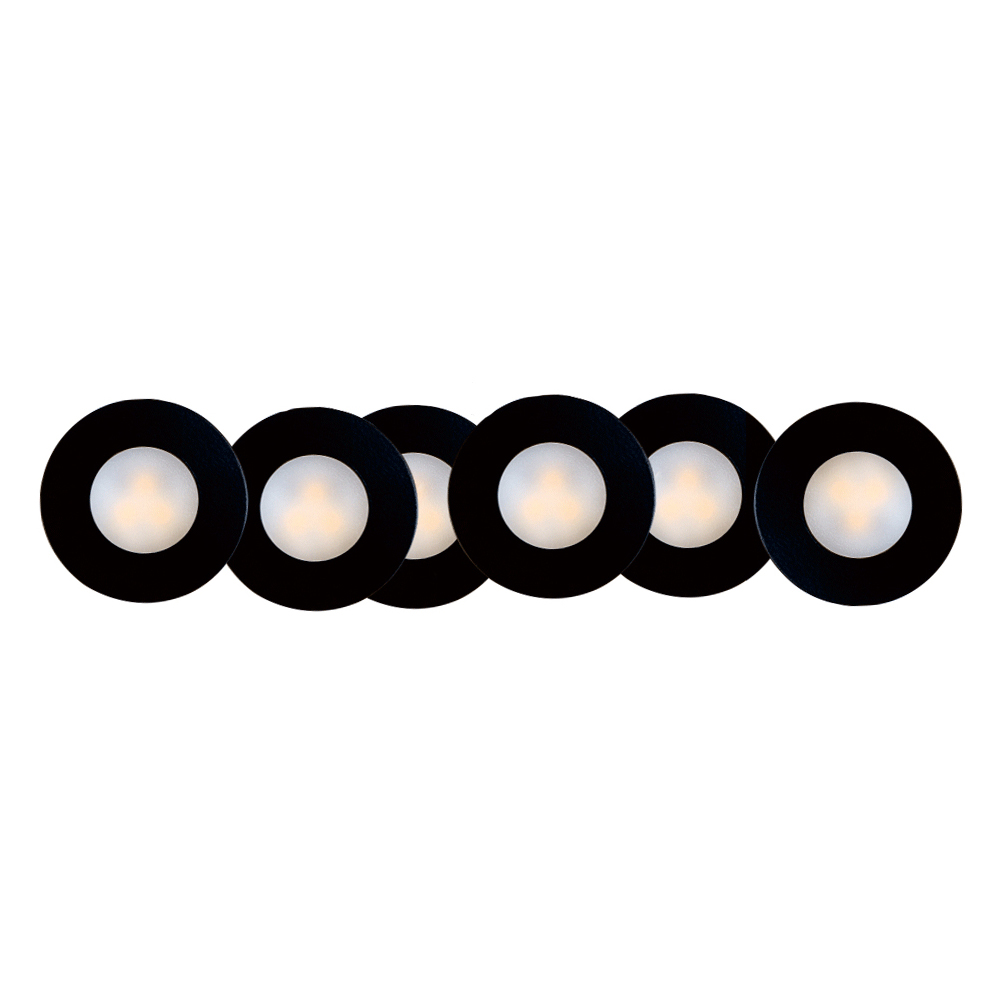

  • White & Black Flat Trims in stock
  • Wall Wash (Eyelid) White & Black trims available as adder
  • Ultra-compact, versatile, easily connected via daisy chained low voltage cable to an either remote mounted class 2 power supply or solar inverter
  • Approved for Damp Locations
  • Warranty: 3 Year

NOTE : Only the 6 pack version comes with the puck lights with end connectors, 6-Port Hub and Plug-in Driver, the 5 pack version comes with open end wire for Hard Wire (NO DRIVER INCLUDED)

Product Information

MOUNTING:
Recessed only, great for under cabinet lighting, niche lighting,
RV & trailers, off-grid solar.
Installation Instructions Mini Pucks

  • Energy Used: 1W
  • Halogen Equivalent: 5W
  • Input: 12V DC
  • Dimmability: Dimmable with compatible 12V power supplies
  • Beam Angle: 100°
  • White & Black Flat Trims in stock
  • Wall Wash (Eyelid) White & Black trims available as adder
  • Light color options:  Soft White 3000K
  • Light output: 70 lm
  • CRI 90 + for True Colour Rendering
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Certification: cETLus

DIMENSIONS:

  • ID 1″ ; OD 1 15/16″ ; Depth 5/8″


Sold in 2 packages:

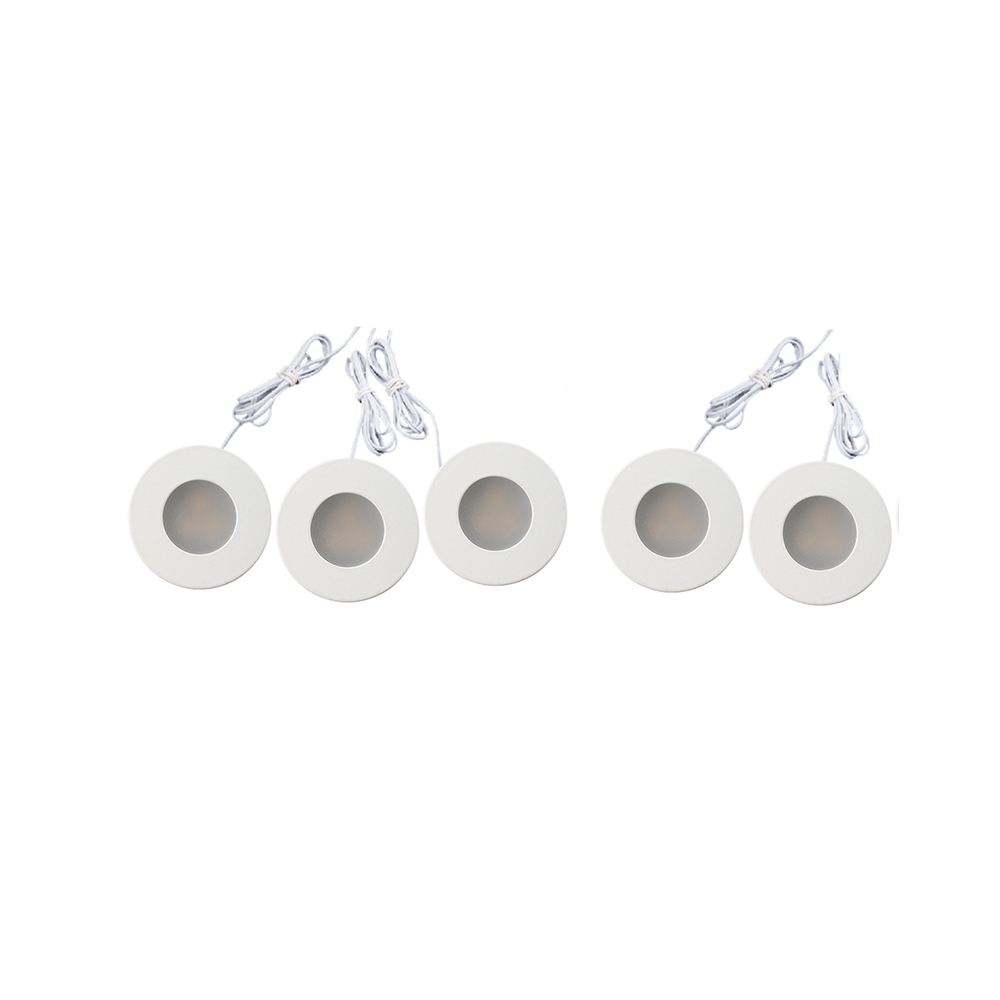

5 pack pucks only no connectors 3K white cat# 5P-AD-108-3K

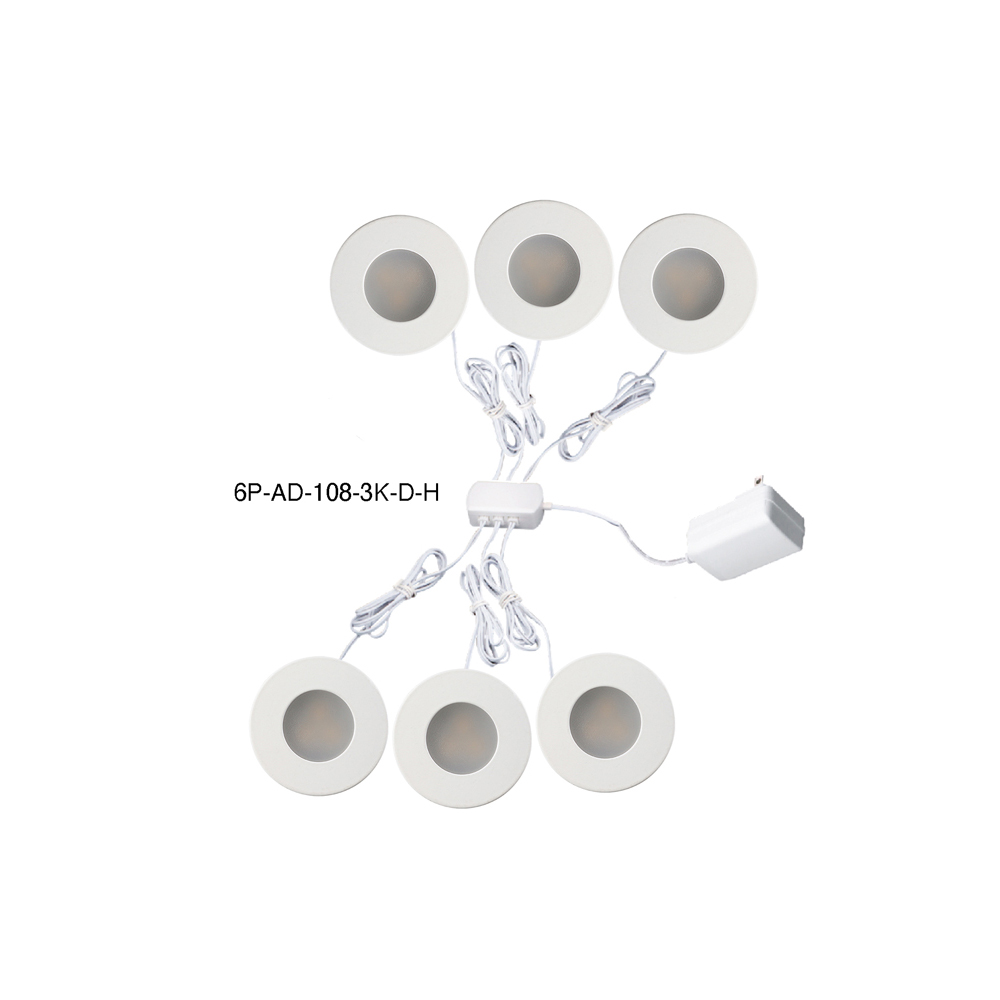

6 pack with connectors, 6 port hub and non-dimmable plug-in driver 3K white cat# 6P-AD-108-3K-D-H

Hard Wired Triac Dimmable Driver

  • 24W
  • cat # HBL024-120-12-D

Plug-In Not Dimmable Driver

  • 12W
  • cat # WLS-PD30LU-24

6-Port Hub

  • cat # AD-107THB1

Specification Sheet

Installation Instructions

Photometric PDF file

Photometric IES file

Video

Customer Reviews

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

You may also like…

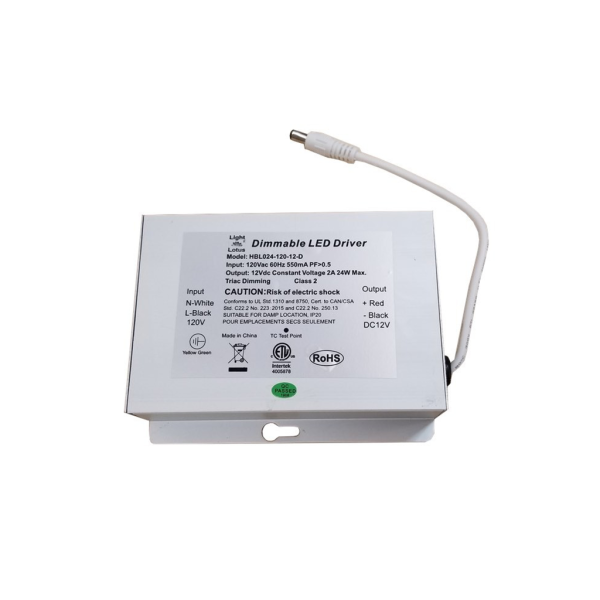

Lotus HBL024-120-12-D – 12V – 24 Watt Hard Wired Triac Dimmable Driver – 120V
