Lotus 4″ Round Commercial 5 CCT & 5 Wattage Selectable – DL254-4-16W-M-A5C5

The Lotus traditional style LED commercial downlights are a versatile option to provide long lasting, energy efficient LED illumination for your office, retail or other commercial lighting application. They are wattage and color temperature tunable, allowing the installer or end-user to select their desired brightness and color temperature to suit their preferences. Their high CRI of 80 means you’ll enjoy true color rendering in the area of illumination ,while their regressed optics reduce glare. They are suitable for installation in wet locations as well as direct contact with insulation, and are 0-10V dimmable. Optional black and silver trim rings as well as goof rings available (sold separately).

The DL254-4-16W-M-A5C5 is a 4″ round LED downlight that provides 570 up to 1,670 lumens of 5CCT-tunable white light color temperatures and the following features:

  • All in one 0-10 V dimmable 4″ LED downlight for retrofit & new construction
  • Perfect for hospitality, healthcare, shopping mall & retail, office, exterior soffit
  • Universal voltage 120-347 V
  • 0-10 V Dimmable 5%-100%

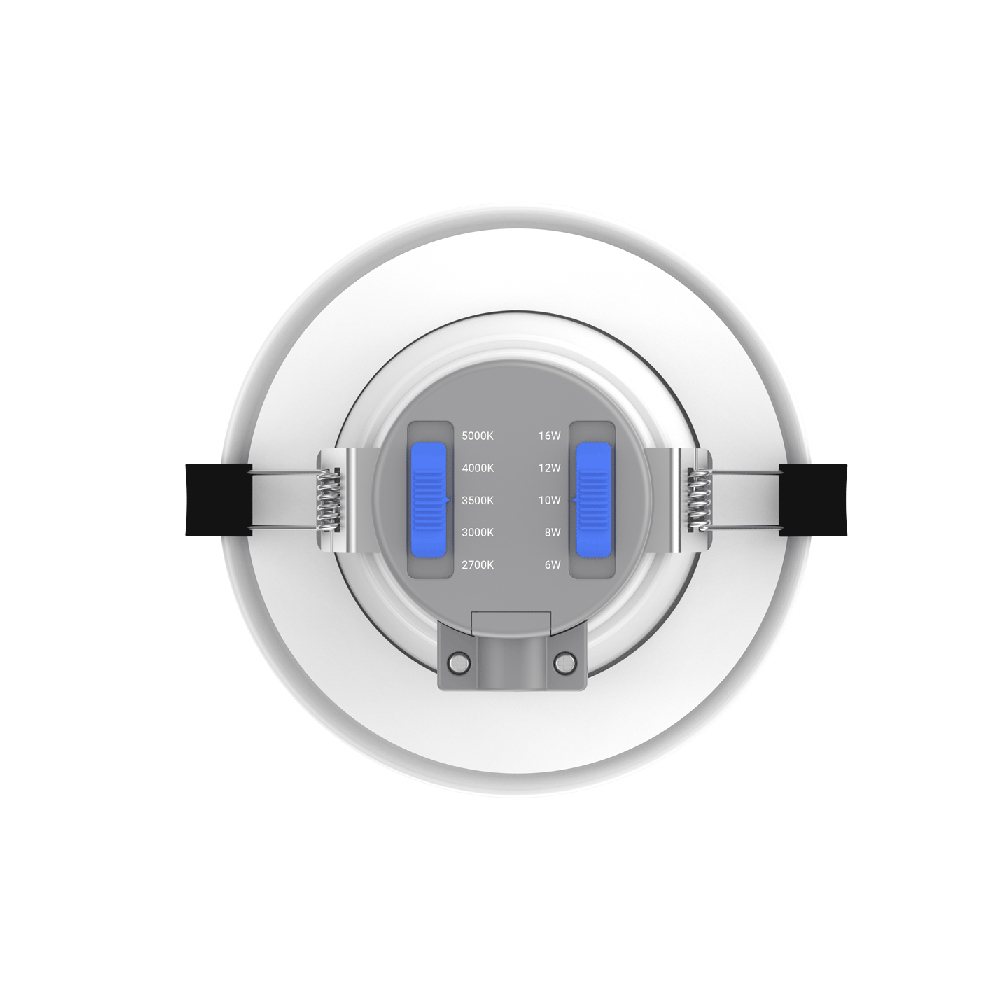

  • 5 CCT selectable 2700 – 3000 – 3500 – 4000 – 5000 K
  • 5 Wattage Adjustable 6 – 8 – 10 – 12 – 16 W
  • Type IC, Wet location & Air-tight
  • Warranty: 5 Year

Product Information

CONSTRUCTION:

All in one solution 4″ round recessed commercial grade LED fixture.
Perfect for hospitality, shopping mall & retail, office, exterior soffit, etc.

MOUNTING:

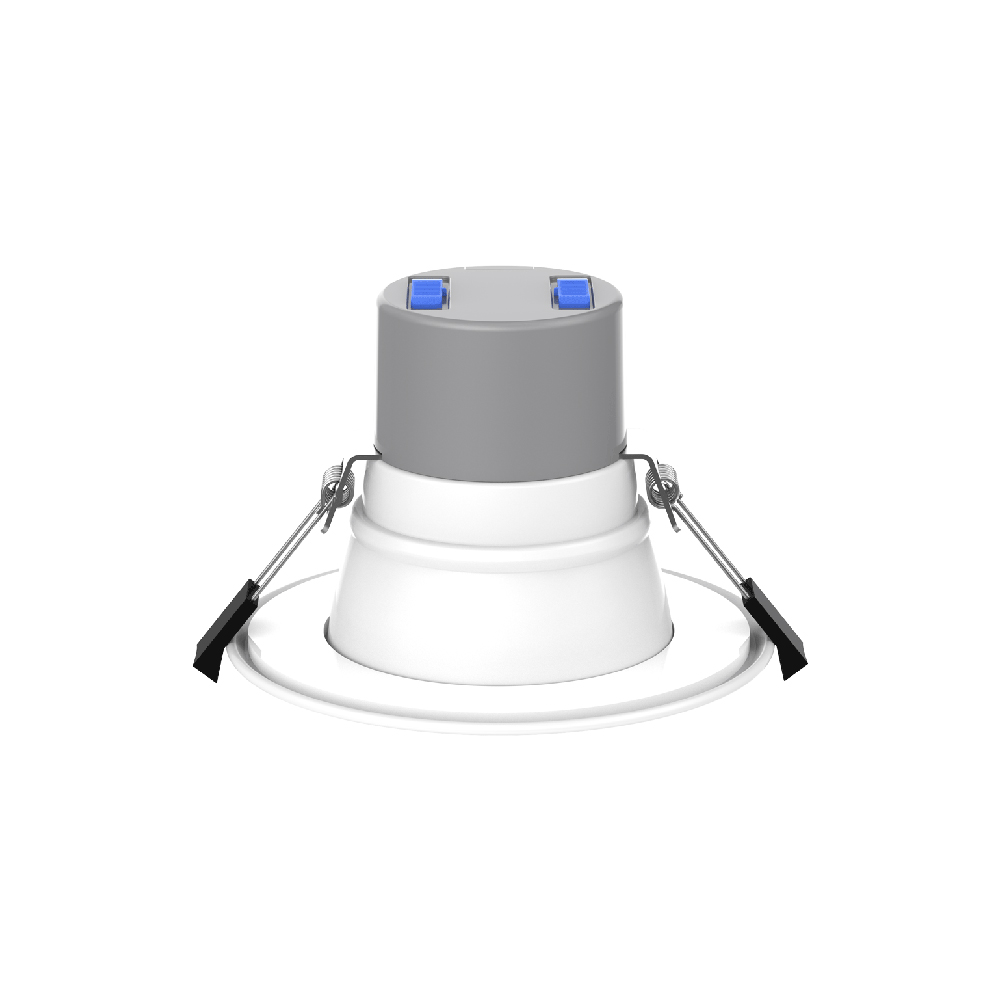

Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 4″

  • Input: 120V-347V AC 50/60 Hz
  • Power Levels (W): 6 | 8 | 10 | 12 | 16
  • Light Output (lm): 570 – 1670
  • Color Temperature (K): 2700K | 3000K | 3500K | 4000K| 5000K
  • Dimming: 0 – 10V
  • Beam Angle: 80°
  • CRI: 80
  • Approved Location: Insulated Ceiling & Wet Locations
  • Ambient Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Projected Life: 70% Light Output at 50,000 Hours
  • Compliance: cETLus
  • Warranty: 5 Year

DIMENSIONS:

  • ID 3 4/4″; OD 6″; Thickness 4 1/8″
  • Cut out: 4″ to 5″

Suitable for insulated ceilings, open plenum, and wet locations.

Accessories Sold Separately


Black trim cover model # LBL-4CRT-B


Silver trim cover model # LBL-4CRT-S


Goof Ring White OD 8 1/2″ model # LBL-4CGR-W


New Construction Mounting Plate for Stud Ceiling model # LBL-MP-C4-8-STUD


New Construction Mounting Plate for T-bar Ceiling model # LBL-MP-C4-10-TBAR
