Lotus 15 Watt 7″ LED Surface Mount – 120V – ADS7R9 Model

SKU : N/A Categories : , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 37.42

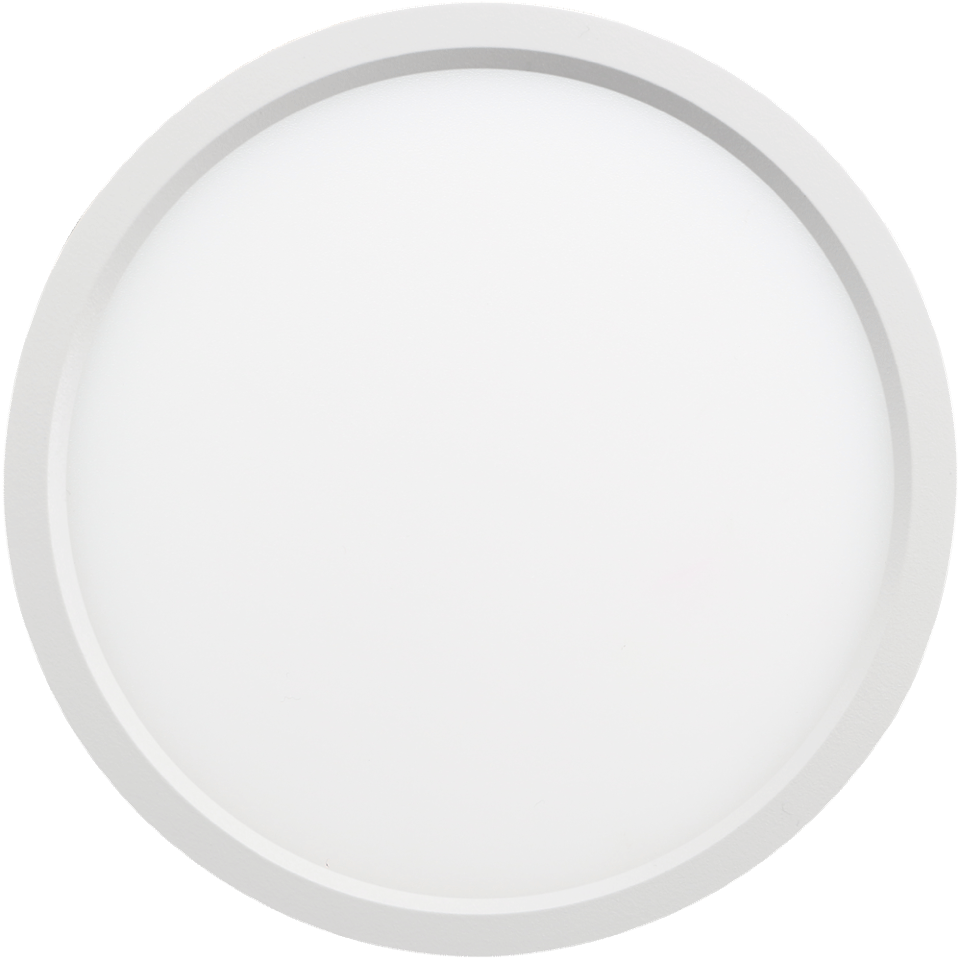

The Lotus LED Lights, 7″ surface mount LED edge-lit ceiling light is an energy efficient option that is suitable for both indoor and outdoor applications. It’s low-profile design with narrow flange provide a modern, architectural appearance and the high CRI of 90+ provides true color rendering in the area of illumination. Fast and easy installation in junction boxes lets you save on labor, and the flicker free AC design provides comfortable, irritation-free light output. Perfect for multi-family, residential, and hospitality applications.

The ADS7R9-WH is a 7″ round, 15 watt LED surface mount fixture, available in 3K, 4K AND 5CCT color selectable with the following features:

  • 7″ Multi-Purpose Surface Mounted Energy-Efficient Fixture
  • Lower Profile With Narrow Flange For Elegant Appearance
  • White & Black Trims in stock
  • Fast & Easy to Install in J-Box or as Retrofit
  • Triac Dimmable Down to 10% Flicker Free
  • Wet Location Approved – Suitable For Indoor & Outdoor (soffit) Installations
  • 3000K, 4000K and 5CCT user selectable options
  • CRI 90+ for True Color Rendering
  • Emergency Battery Backup Sold Separately
  • Warranty: 5 Year

Product Information

CONSTRUCTION:
Round 7″ Multi-Purpose Surface Mount Fixture

MOUNTING:
Installation Instructions

  • Input Voltage: Single CCT 120V, 5CCT option 120-277V AC
  • Dimmability – TRIAC Dimmable 10% – 100%
  • Energy Used: 15W
  • Halogen equivalent: 120W
  • Beam Angle: 100°
  • Light color: 3000K, 4000K and 5CCT 2700K to 5000K
  • Light output: 1150 to 1300 lm lm
  • CRI: 90+
  • Trim color:  White & Black
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Warranty: 5 Years
  • Rated: cETLus, Energy Star, T24

DIMENSIONS:

  • OD 7 7/8″; Thickness 5/8″

Emergency Battery Backup

  • 90 minute guaranteed
  • real life operating with new battery: 3 hours at around 50% brightness
  • cat # EMB-SF001
  • Spec Sheet: EMB-SF001
  •

Empty Surface Mount Backbox

Specification Sheets

Sales Sheet

Installation Instructions

PDF Photometric files

Photometric PDF files:
PDF 2700K | PDF 3000K | PDF 3500K | PDF 4000K | PDF 5000K

Photometric IES files:
IES 2700K | IES 3000K | IES 3500K | IES 4000K | IES 5000K

Video

Customer Reviews

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
